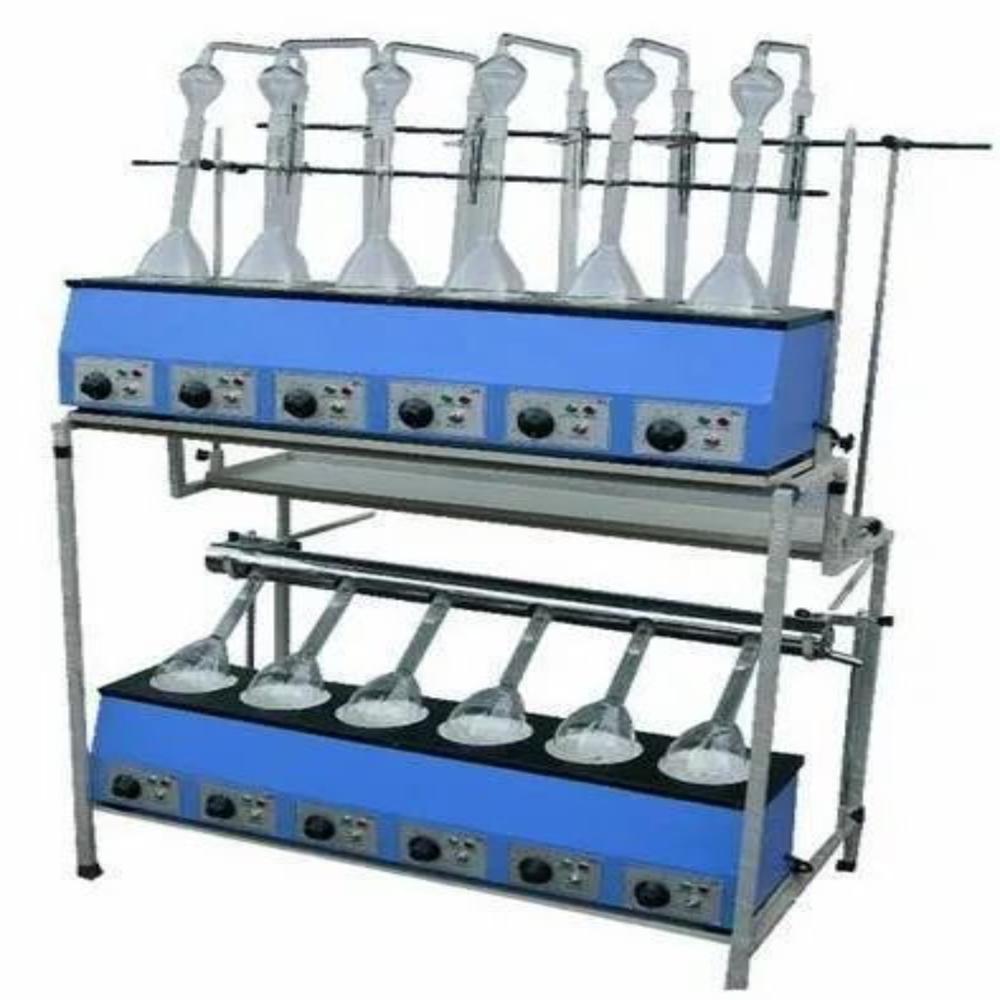

Aicil Kjeldahl Distillation & Digestion 3 Test

Name: Aicil Kjeldahl Distillation & Digestion 3 Test
Brand: Sterling India
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Kjeldahl Distillation & Digestion 3 Test Specification

Heating Capacity
Approx. 300-500W per heater

Features
6 Place Model, Individual Heater Controls, Robust Structure, Separate digestion and distillation sections, Steel Stand

Control Type
Individual/manual knob controls

Accuracy
High (laboratory grade)

Power Supply
Electric, Single Phase

Temperature Resistance
Up to 450C (glassware dependent)

Display Type
Analog/Manual setting

Glass Type
Borosilicate Glass

Shape
Rectangular Unit, Cylindrical Flasks

Type
Kjeldahl Distillation & Digestion Unit

Dimension (L*W*H)
Custom/Standard Lab Size

Equipment Type
Laboratory Analytical Equipment

Equipment Materials
Stainless Steel, Powder Coated steel, Borosilicate Glass

Power
Electric, typically 220-240V AC

Voltage
220-240 V

Material
Metal Body & Borosilicate Glassware

Application
Nitrogen/Protein Analysis in Laboratory

Capacity (Ltr)
500 ml per flask (typically)

Heating Element Type
Ceramic insulated or tubular heaters

Fume Removal
Provision for exhaust manifold or chimney

Sample Processing
Simultaneous multi-sample processing

Number of Tests
3 Place or 6 Place models available

Compatible Flasks
Standard Kjeldahl flasks 300 / 500 ml

Color
Blue with Stainless Steel finish

Usability
Easy to use, suitable for educational, research and industrial labs

Mounting
Table/Bench mounted

Accessories Included
Rod Stand, Clamp accessories, Glass Reflux Condenser

Safety Features
Fuse and indicator for overheat protection

Insulation
Thermally insulated steel body

About Aicil Kjeldahl Distillation & Digestion 3 Test

Mantle type heating system. This is very useful for estimation of nitrogen content in the substance by digestion for 300 & 500 ml capacity flacks. Provided with fume duct and pair of hangers rating of each test 200 watts. supplied with or without glass parts & clamps. To work on 220/230 supply

Efficient Multi-Sample Processing

Designed for both capacity and precision, the Aicil Kjeldahl Distillation & Digestion Unit enables simultaneous analysis of up to six samples, maximizing laboratory throughput. Its strong heating capabilities, coupled with individual manual controls, provide users with flexibility and reliable results across nitrogen and protein determination tasks.

Robust Construction & Superior Safety

The equipment is built with stainless steel, powder-coated finishes, and borosilicate glassware to withstand challenging lab environments. Overheat protection via fuse and visual indicators, along with effective fume removal mechanisms, ensure secure operation and support compliance with safety standards.

Flexible & User-Friendly Operation

Easy to install on any laboratory table or bench, this unit is ideal for diverse laboratory applications. Manual controls enable straightforward operation, while included accessories facilitate quick and seamless setup, making it a practical choice for educational, research, and industrial users.

FAQ's of Aicil Kjeldahl Distillation & Digestion 3 Test:

Q: How does the Aicil Kjeldahl Distillation & Digestion Unit process multiple samples at once?

A: This unit is available in both 3 place and 6 place models, allowing simultaneous sample processing using individually controlled heating elements. Each sample is accommodated in a standard Kjeldahl flask (300/500 ml), enhancing laboratory efficiency and throughput.

Q: What types of heating elements are offered in this equipment?

A: The unit features options for either ceramic insulated heaters or tubular heaters, both capable of delivering stable heating with laboratory-grade accuracy. Each heater can be controlled individually for optimal performance during digestion or distillation steps.

Q: When should I use the exhaust manifold or chimney provision?

A: Use the exhaust manifold or chimney when processing samples likely to produce fumes or vapors to ensure safe removal from the workspace. This enhances workplace safety and helps laboratories maintain air quality standards.

Q: Where can the Aicil Kjeldahl Distillation & Digestion Unit be installed?

A: With its table or bench-mounted design, the unit can be conveniently installed in most standard laboratory environments, including educational, research, and industrial settings. Its standard or custom dimensions ensure compatibility with typical lab benches.

Q: How does the equipment ensure user safety during operation?

A: The unit features a thermally insulated steel body and includes overheat protection with a fuse and indicator light. These safety features, along with robust construction and proper fume exhaust options, minimize risks during regular laboratory use.

Q: What accessories are included with the unit for immediate use?

A: The unit comes with a rod stand, clamp accessories, and a glass reflux condenser, enabling straightforward assembly and usage upon delivery. These accessories support easy setup and operation for nitrogen or protein analysis procedures.

Q: What benefits does the Kjeldahl method offer when using this equipment?

A: This unit delivers highly accurate nitrogen and protein measurements, crucial for research, educational experiments, and industrial quality control. Its robust design and user-friendly operation save time and resources, offering consistent analytical results.
