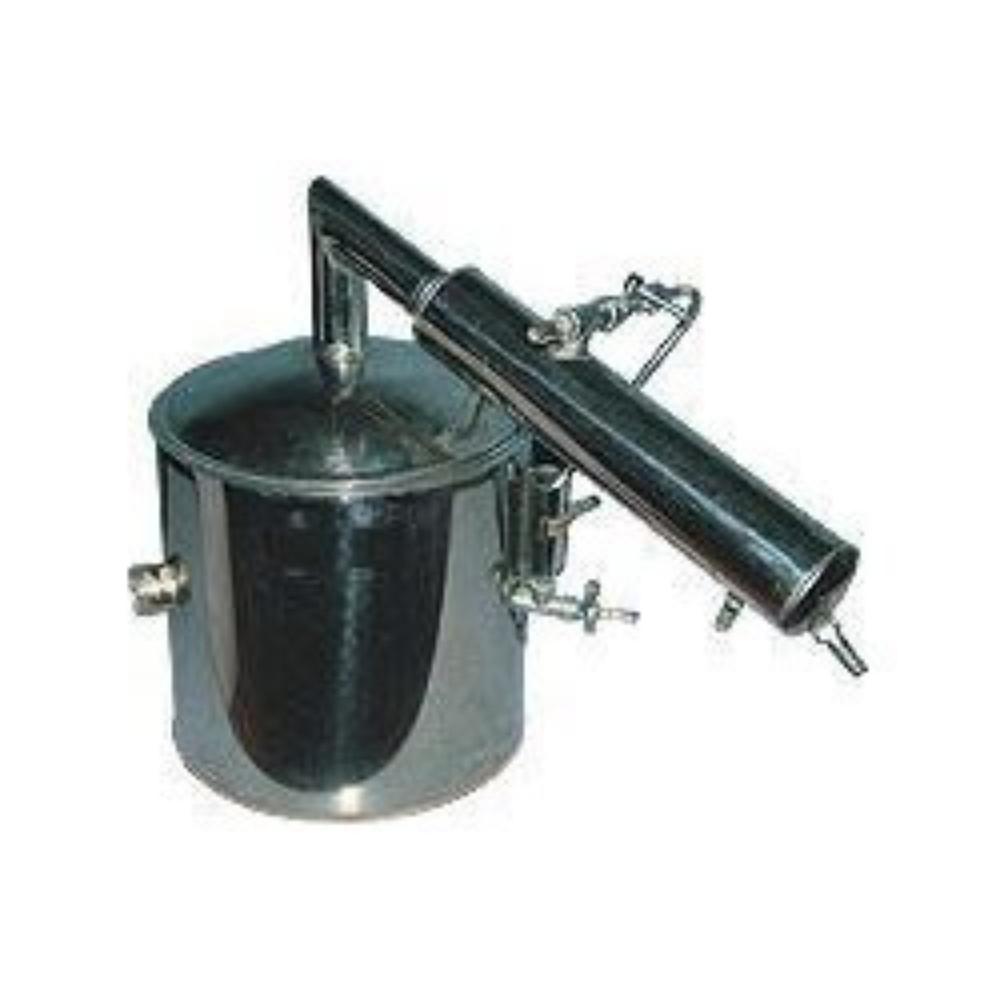

Aicil Water Still (Barnstead Type) 8 Ltr

Name: Aicil Water Still (Barnstead Type) 8 Ltr
Brand: Sterling India
Price: 49000.0 INR
Availability: InStock

Price 49000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Water Still (Barnstead Type) 8 Ltr Specification

Power Supply
AC Mains

Glass Type
Borosilicate Glass (for condenser, where applicable)

Temperature Resistance
Up to 95C

Shape
Cylindrical Body with Horizontal Condenser

Display Type
No digital display (Analog only)

Features
Corrosion Resistant, Heavy Duty Construction, Easy to Clean, Automatic Water Level Cut-off, Quick Heating

Control Type
Manual Valve Controlled

Heating Capacity
Up to 8 Liters/hour distilled water

Type
Barnstead Type Water Still

Dimension (L*W*H)
Approx. 420 x 290 x 540 mm

Equipment Type
Water Distillation Unit

Equipment Materials
Stainless Steel (SS) construction

Power
3 kW

Voltage
220-240 V, 50 Hz

Material
Stainless Steel (SS304)

Application
Laboratory Water Distillation

Capacity (Ltr)
8 Ltr/hr

Mounting
Table Top/Bench Top

Cooling Requirement
Continuous Flow of Tap Water in Condenser

Water Output Quality
Pyrogen free, conductivity < 3S/cm

Suitable For
Laboratory, Research, Medical, Pharmaceutical, Chemical Analysis

Output Connection
Standard Borosilicate Output Nozzles

Finish
Polished Stainless Steel

Safety Features
Automatic Safety Cut-off for Overheating/Low Water Level

Distillation Process
Single Stage Water Distillation

Heater Protection
Shielded Heater Fitted Below Tank

Input Connection
Standard Fitting for Tap Water Supply

Inlet Water Pressure Required
0.5 to 1.5 kg/cm2

About Aicil Water Still (Barnstead Type) 8 Ltr

The Aicil Barnstead Type Water Still is a high-performance, single-distilled laboratory unit designed for producing pyrogen-free distilled water. It features a sturdy double-walled construction, efficient heating, and safety features like an automatic ejection device or wall-mounting. [1, 2, 3, 4, 5]

General Specifications

Construction: Double-walled with inner and outer chambers made of highly polished Stainless Steel (typically SS 304).
Insulation: The gap between the walls is packed with high-grade glass wool for superior heat insulation and energy efficiency.
Water Quality: Produces pyrogen-free, single-distilled water suitable for research centers, pharmaceutical industries, and hospitals.
Mounting Type: Available in both bench-top/table models and wall-mountable brackets.
Safety Mechanism: Fitted with an automatic ejection device that operates to protect the system if the main water supply is cut off or the chamber runs dry.
Cooling Type: Available in both air-cooled and water-cooled variants

High-Quality Distilled Water Output

The Aicil Water Still produces up to 8 liters of premium pyrogen-free distilled water every hour, with a conductivity of less than 3 S/cm. This level of purity meets the needs of laboratories and research facilities requiring contamination-free water for sensitive experiments, medical procedures, and precise chemical analyses.

Robust and User-Friendly Design

Built with heavy-duty SS304 stainless steel, this water distillation unit features a cylindrical body and a horizontal borosilicate condenser. Its ergonomic table/bench-top configuration makes placement flexible in laboratory settings, and its easy-to-clean structure ensures low maintenance and reliable operation.

Advanced Safety and Control Features

Equipped with automatic safety cut-off systems to prevent overheating and operate reliably in low water conditions, the water still provides peace of mind. Manual valve controls allow precise operation, while shielded heaters and corrosion-resistant materials extend the lifespan of the equipment.

FAQ's of Aicil Water Still (Barnstead Type) 8 Ltr:

Q: How does the Aicil Water Still ensure water purity during distillation?

A: The unit uses a single-stage water distillation process with a borosilicate condenser and stainless steel construction. This setup delivers pyrogen-free distilled water with conductivity below 3 S/cm, making it suitable for critical laboratory and medical applications.

Q: What safety features are built into the Aicil Water Still?

A: The still is equipped with automatic cut-off functions that activate in the event of overheating or a low water level. The shielded heater is strategically placed below the tank to minimize risk and enhance operational safety.

Q: When should I use the Aicil Water Still in a laboratory setting?

A: It is ideal for occasions when you require high-purity distilled water, such as during research, chemical analyses, or medical and pharmaceutical procedures that demand contaminant-free water.

Q: Where can this water still be mounted or placed?

A: The design allows for table top or bench top installation, providing flexibility to integrate the unit into various laboratory workspaces efficiently.

Q: What is the process for operating the water still?

A: Simply connect the input fitting to a tap water supply, maintain a continuous flow of cooling water through the condenser, and use the manual valve to control operation. The device will distill water as long as proper water input and power are supplied, automatically stopping if safety concerns arise.

Q: What are the benefits of using a stainless steel (SS304) and borosilicate glass construction?

A: SS304 provides superior corrosion resistance and structural durability, while the borosilicate glass condenser ensures high thermal resistance and chemical stability, promoting reliability and ease of cleaning.
