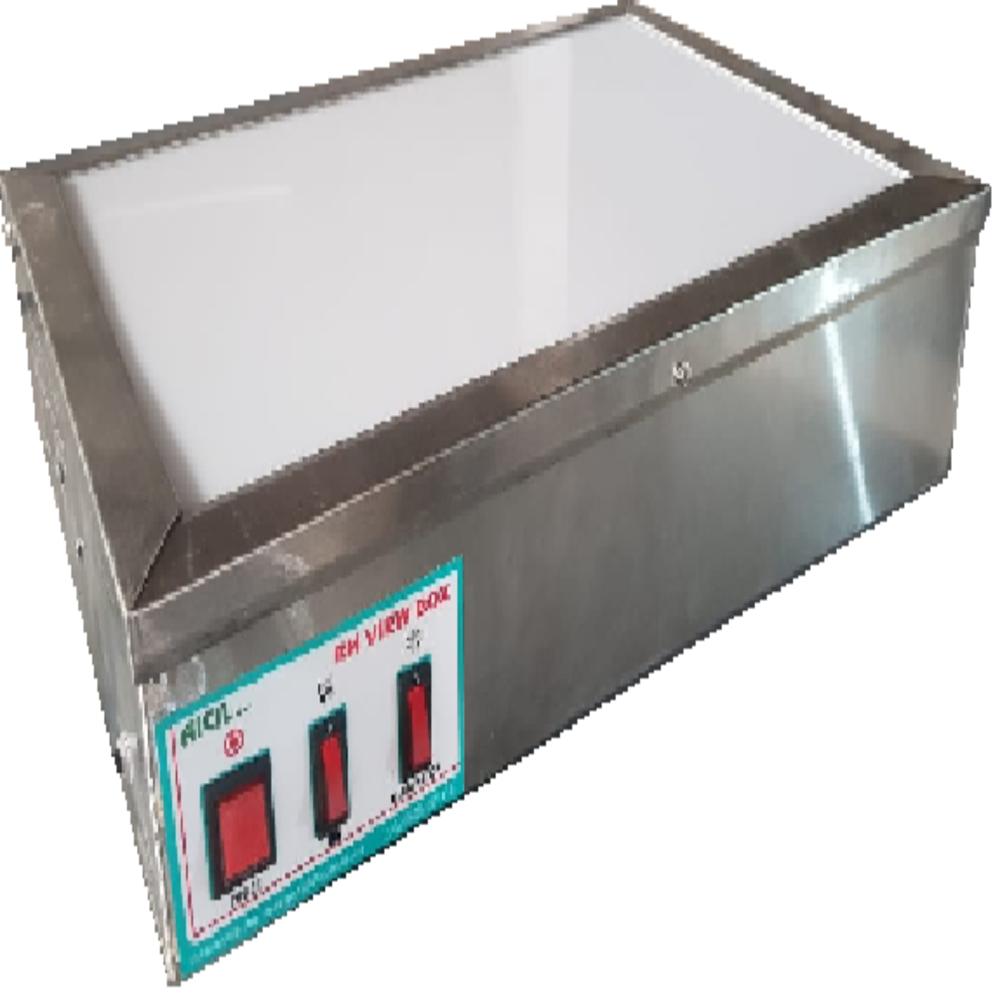

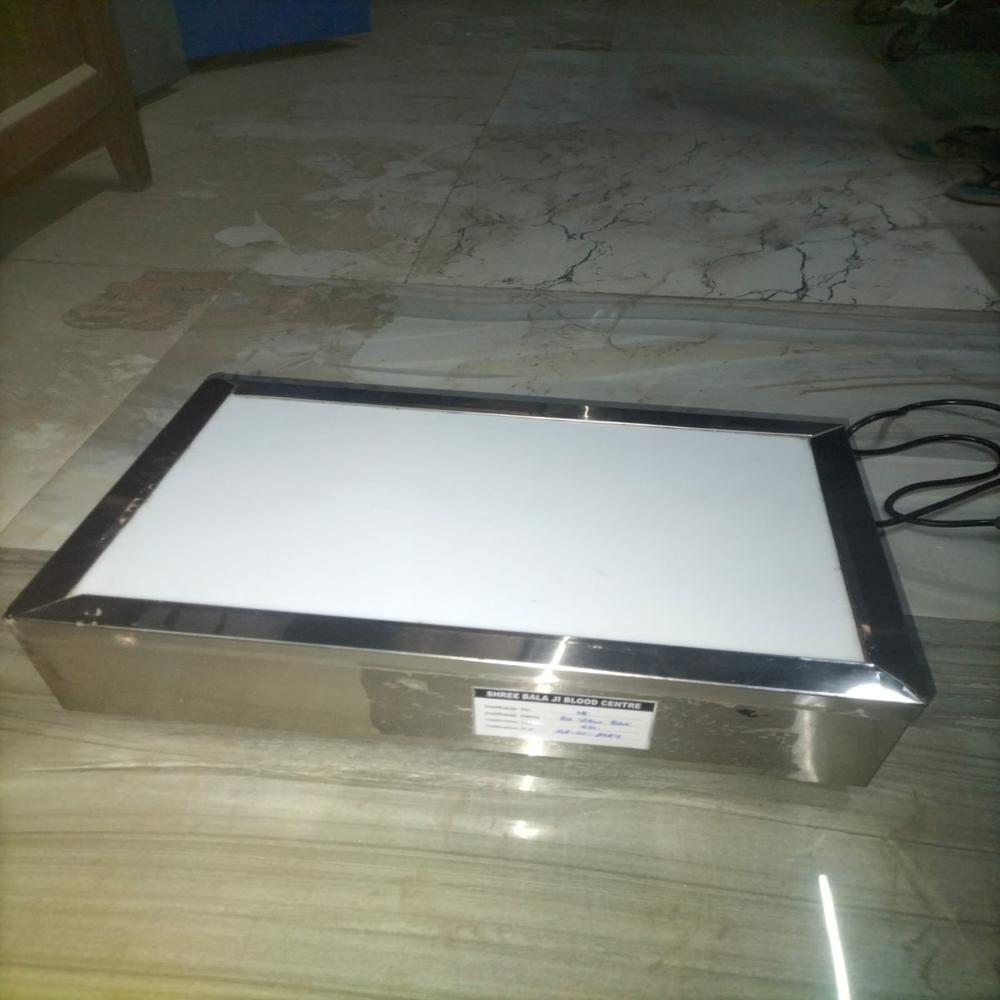

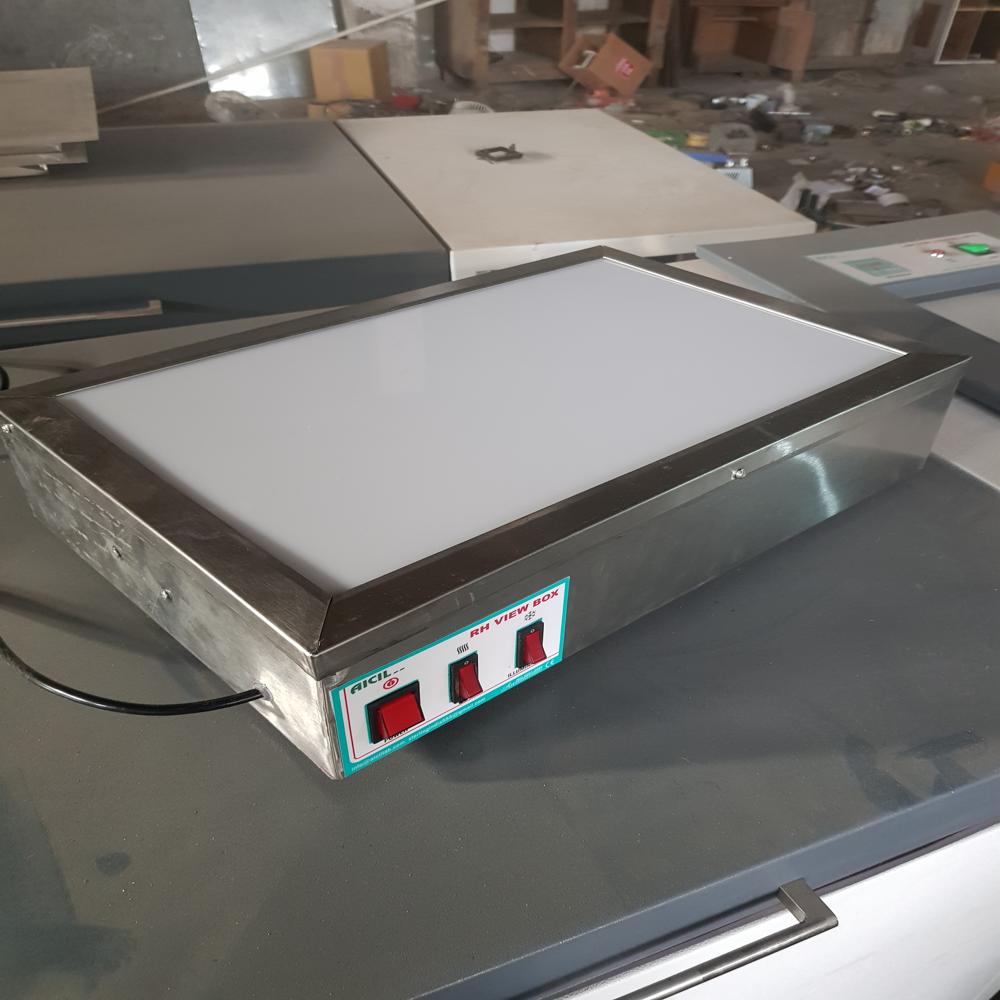

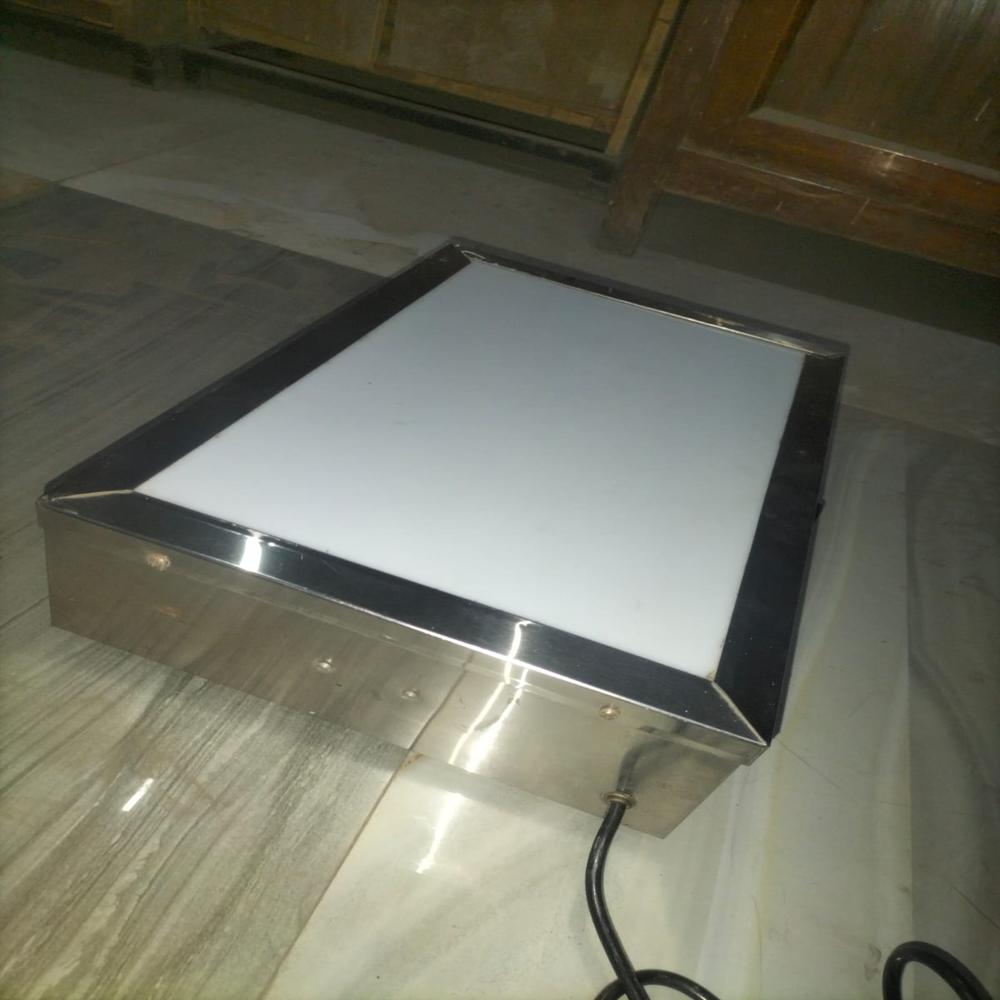

Rh View Box Basic

Name: Rh View Box Basic
Brand: Sterling India
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rh View Box Basic Specification

Humidity Range
Up to 80% RH (Non-condensing)

Display Type
Backlit Illuminated Surface

Weight
Around 5.5 kg

Dimension (L*W*H)
Approx. 510 mm 340 mm 120 mm

Suitable For
Radiographers, Hospitals, Diagnostic Centers

Shape
Rectangular

Storage Capacity
1 Film at a time

Power
18-24 W

Properties
Uniform Light Distribution, Flicker-Free Viewing

Application
Viewing RH (Radiographic) X-Ray Films

Accuracy
Consistent Brightness Across Surface

Material
Stainless Steel Body with Acrylic Viewing Surface

Color Code
Silver with White Display

Phase
Single Phase

Temperature Range
10C to 40C Operating

Height
Approx. 120 mm

Treatment Type
Film Observation

Function
Film Viewing for Interpretation/Analysis

Use
Medical, Laboratory, Industrial Radiography

Automation Grade
Manual

Frequency
50 Hz

Product Type
X-Ray Film View Box

Voltage
220 V AC

Power Source
Electric

Display
Single View

Frame Construction
Corrosion Resistant Metal Frame

Glass Thickness
4-6 mm Acrylic

Light Intensity
3500-5000 Lux

Mounting
Table Top

Illumination Source
LED / Fluorescent Tube

Cooling Mechanism
Natural Air Ventilation

Front Panel Features
Switches for Power and Light Intensity

Noise Level
Silent Operation

About Rh View Box Basic

The RH View box Is equipped with an illuminated, heated and titable. viewingsurface. Accommodates slides containing RH typing serum and a suspension of redblood cell, for qualitative RH typing tests. ideal for applications like classificationand minipulation of blood images of anti-serum transparencies, albumin control, RHtest, colony counting, micro examinations, colloidal rings, observation of precipitates, acid and oil filter, illuminates test slide of facilitate the viewing or absence ofagglutination

Uniform and Flicker-Free Illumination

Experience consistent, flicker-free lighting across the entire viewing surface, ensuring every radiographic detail is visible. The Rh View Box Basic's advanced design utilizes either high-quality LED or fluorescent tubes to deliver light intensity in the range of 3,500 to 5,000 Lux, suitable for precise film interpretation.

Robust and Hygienic Construction

Crafted with a corrosion-resistant stainless steel body and 4-6 mm thick acrylic front, the Rh View Box Basic is built to last. Its silver finish with white display adds a sleek touch to any workspace while ensuring ease of cleaning and hygiene-critical in medical and laboratory settings.

Silent and Efficient Operation

Thanks to its natural air ventilation system and silent working mechanism, the view box operates without distracting noise. The manual controls allow easy adjustment of power and light intensity, suiting your workflow and safeguarding X-ray film analysis accuracy.

FAQ's of Rh View Box Basic:

Q: How does the Rh View Box Basic ensure uniform light distribution for viewing X-ray films?

A: The view box features high-quality LED or fluorescent light sources and a carefully designed acrylic viewing surface that work together to provide consistent and uniform brightness (3500-5000 Lux) across the entire area, eliminating flickering and hotspots for accurate film assessment.

Q: What types of films and applications is this view box suitable for?

A: The Rh View Box Basic is designed specifically for RH (Radiographic) X-ray film viewing, making it ideal for use in medical, laboratory, and industrial radiographic inspection. Its precise and consistent illumination supports detailed interpretation and analysis in hospitals, diagnostic centers, and research labs.

Q: When should I use the light intensity adjustment feature?

A: The light intensity can be easily adjusted using the front-panel switches. Use lower intensity for films that require less illumination or higher intensity to reveal subtle details in denser X-ray films. This flexibility ensures optimal visualization based on film type and user preference.

Q: Where can the Rh View Box Basic be installed?

A: With its compact, table-top design and robust stainless steel construction, the view box can be conveniently installed in radiography departments, laboratories, industrial facilities, or anywhere precise film analysis is required on a stable flat surface.

Q: What is the process for maintaining and cleaning the device?

A: Maintenance is straightforward: simply wipe the stainless steel body and acrylic viewing surface with a soft, damp cloth to remove dust and fingerprints. Regular cleaning ensures hygiene and maintains optimal light transmission for accurate film viewing.

Q: How does the natural air ventilation system benefit users?

A: The natural air ventilation system dissipates heat efficiently without the need for noisy fans, ensuring silent operation and preventing overheating. This design contributes to the device's durability and user comfort during extended viewing sessions.

Q: What are the main benefits of using the Rh View Box Basic for radiographers?

A: Radiographers benefit from precise, consistent illumination with silent operation, allowing for accurate film interpretation. The durable, easy-to-clean body, adjustable brightness, and user-friendly controls improve workflow efficiency and ensure long-term reliable performance in clinical and industrial environments.
