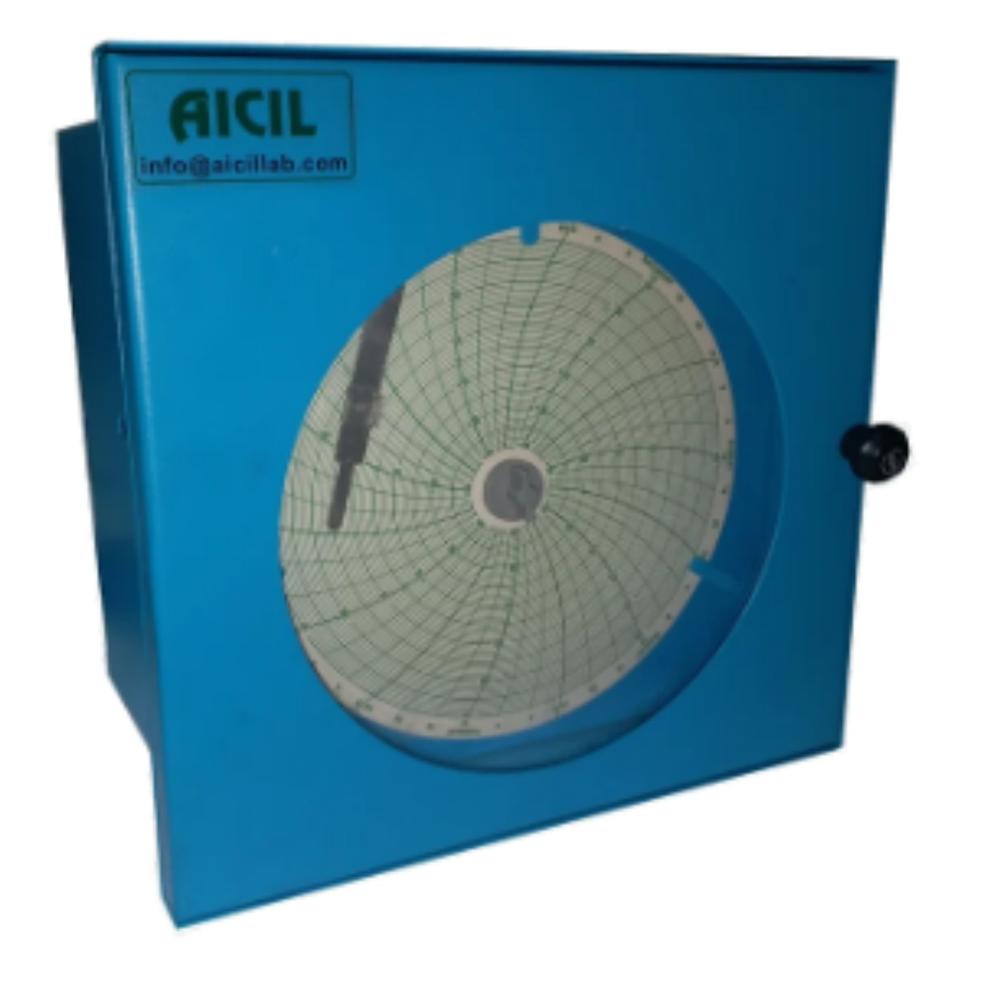

Aicil Chart Recorder

Name: Aicil Chart Recorder
Brand: Sterling India
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Chart Recorder Specification

Function
Records process variable on chart paper

Weight
4-5 kg (approx)

Color Code
Blue

Use
Industrial, Laboratory

Properties
Continuous Record, Durable Build, Lockable Door

Shape
Square Cabinet with Round Chart

Frequency
50 Hz

Automation Grade
Semi-Automatic

Phase
Single Phase

Treatment Type
Painted/Coated

Product Type
Chart Recorder

Humidity Range
0 to 100% RH (if provided)

Material
Powder Coated Metal Body

Height
300 mm

Application
Temperature and Humidity Recording

Power
Electric

Temperature Range
0C to 100C (Typical)

Storage Capacity
One chart per recording cycle

Accuracy
1% of Full Scale

Suitable For
Environment Monitoring, Pharma, Food Processing

Dimension (L*W*H)
300mm x 300mm x 150mm (approx)

Display Type
Circular Paper Chart

Display
Analog Chart

Power Source
AC Power

Voltage
230V AC

Recording Duration
24 Hours/7 Days per chart (model dependent)

Chart Size
Standard 8-inch diameter

Input Type
RTD, Thermocouple, or Humidity Sensor (optional)

Operating Temperature
0C to 50C

Enclosure Protection
Dustproof, Lockable Enclosure

Pen Type
Disposable Fiber Tip Ink Pen

Alarm Output
Optional Relay Contact

Calibration
Factory Calibrated, User Calibratable

Number of Channels
Single or Dual Channel (as per model)

Mounting Type
Wall or Table Mount

About Aicil Chart Recorder

Features

Accurate Data Recording Provides precise graphical records of temperature, pressure, or flow.
Circular Chart System Easy-to-read format with continuous recording.
Sturdy Construction Durable design suitable for laboratory and industrial environments.

Versatile Recording Options

Choose between 24-hour and 7-day recording cycles to suit your monitoring needs. The Aicil Chart Recorder accommodates both duration requirements on a standard 8-inch diameter chart, ensuring continuous and uninterrupted data logging. Single or dual channel capabilities allow flexible monitoring of temperature and/or humidity, depending on model selection.

Durable Construction and Security

Designed for reliability, the chart recorder features a rugged, powder-coated metal enclosure that is both dustproof and lockable. Its square cabinet houses a round chart, offering protection for both sensitive electronics and recorded data, making it suitable for industrial and laboratory applications where environmental resilience is critical.

User-Friendly Operation and Calibration

Factory calibrated for immediate use, the Aicil Chart Recorder is also user calibratable for ongoing accuracy. The semi-automatic function, clear analog chart display, and choice of wall or table mounting simplify installation and daily operation, reducing training time and upkeep for process staff.

FAQ's of Aicil Chart Recorder:

Q: How do I calibrate the Aicil Chart Recorder if accuracy needs adjustment?

A: The recorder comes factory calibrated, but users can perform manual calibration as needed. Calibration instructions are included in the user manual, allowing adjustments to maintain the 1% full scale accuracy. It's recommended to calibrate the device periodically or after sensor replacement to ensure reliable readings.

Q: What are the benefits of the lockable, dustproof enclosure for industrial environments?

A: The dustproof, lockable enclosure protects internal components and paper charts from contamination and unauthorized access. This ensures data integrity over longer recording periods and extends the lifespan of the instrument in harsh or busy industrial settings.

Q: Where can the recorder be mounted, and how does its design support various installations?

A: The Aicil Chart Recorder can be wall-mounted or placed on tables, providing installation flexibility in laboratories, production lines, or monitoring stations. Its compact, square cabinet with a round chart is designed to fit efficiently in limited spaces while offering easy access for operation and chart replacement.

Q: What types of sensors can be used with this chart recorder, and how is data represented?

A: The device supports RTD, thermocouple, and optional humidity sensors as input. Data from selected sensors is continuously recorded on a circular paper chart, displaying analog trends for single or dual variable monitoring based on the chosen model.

Q: When should I replace the disposable fiber tip ink pen, and how is it done?

A: The ink pen should be replaced when lines become faint or after each completed chart cycle. Replacing the pen is straightforward-open the lockable enclosure, remove the old pen, and insert a new disposable fiber tip pen following the user guide instructions.

Q: How does the recorder support process monitoring in pharmaceutical or food processing industries?

A: Continuous temperature and humidity recording supports regulatory compliance and quality assurance for pharmaceutical, food processing, and related industries. Accurate analog chart documentation provides an auditable record of environmental conditions throughout the process cycle.
