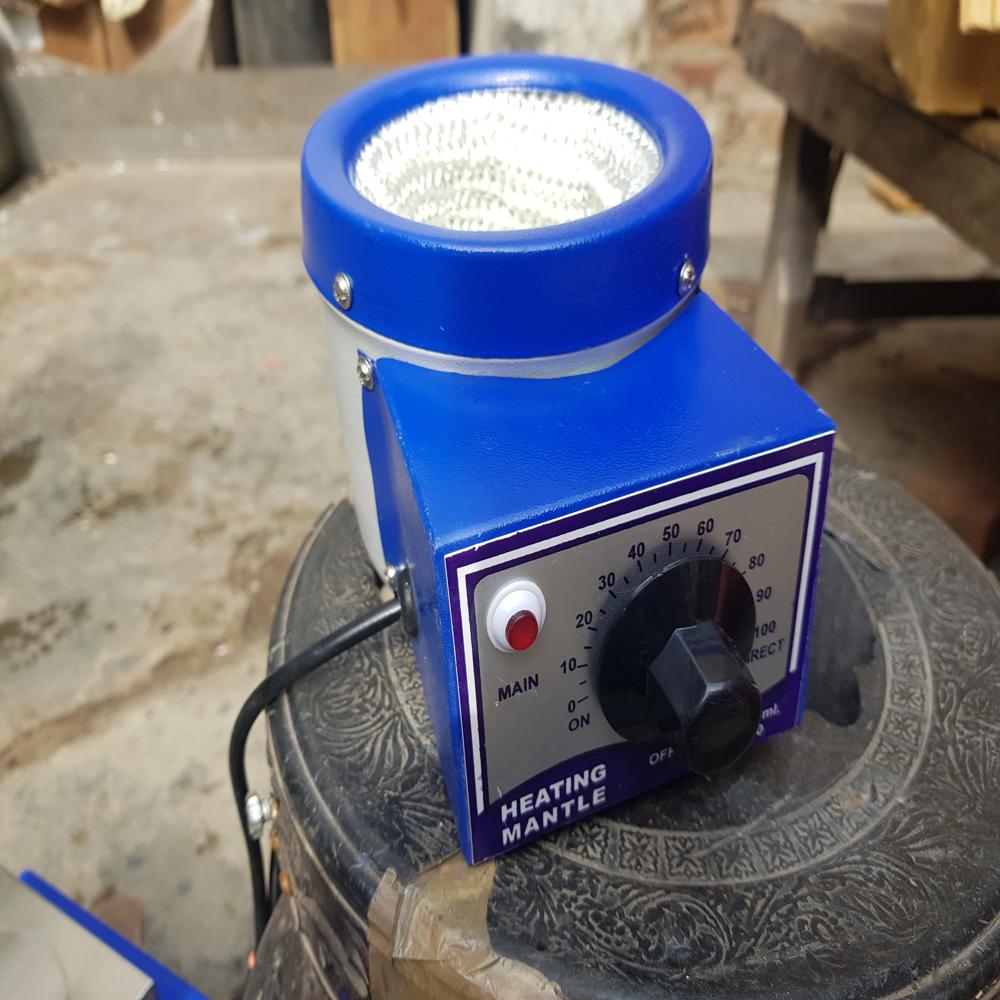

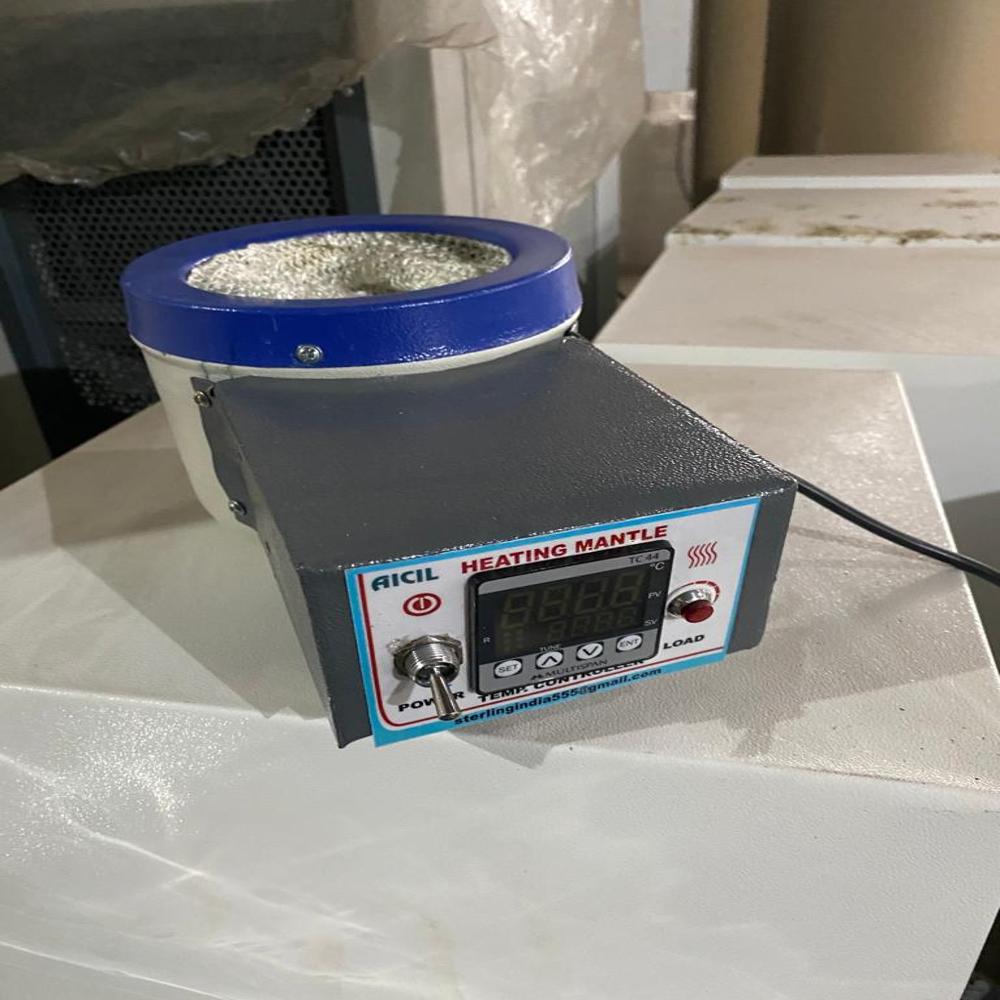

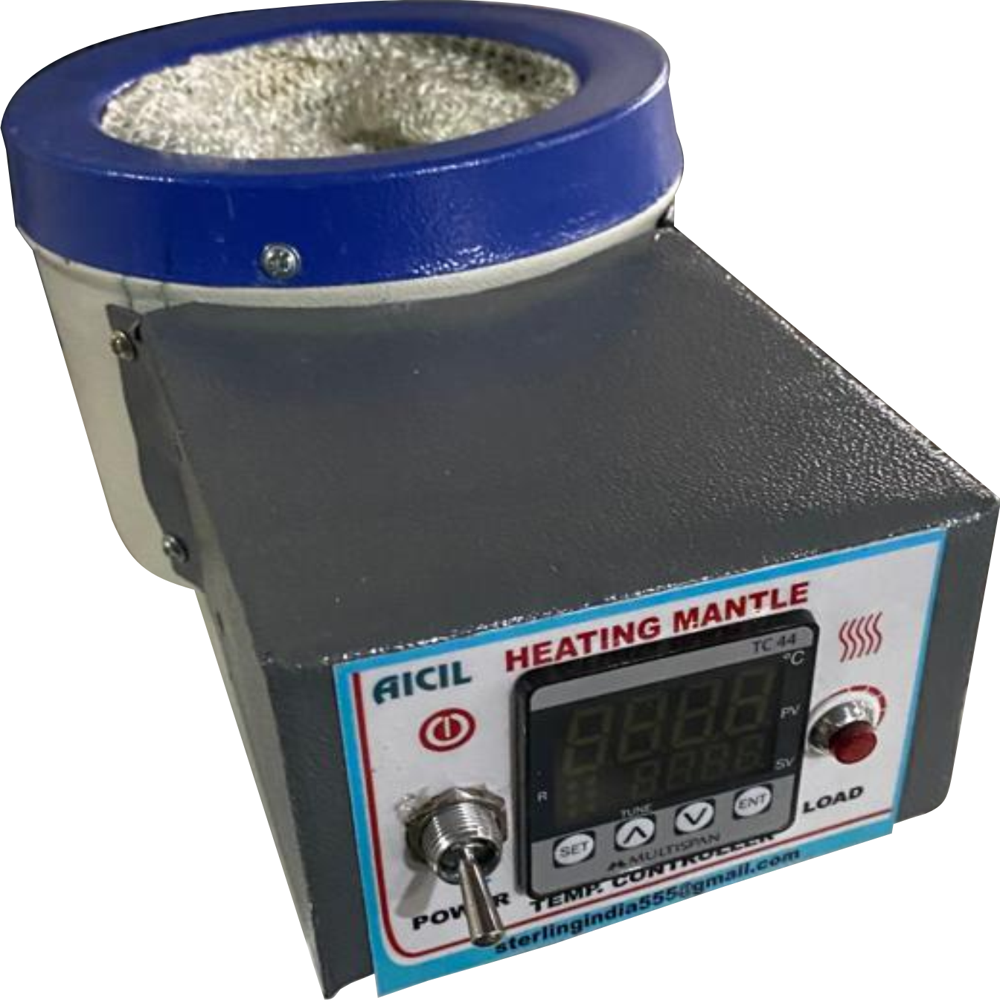

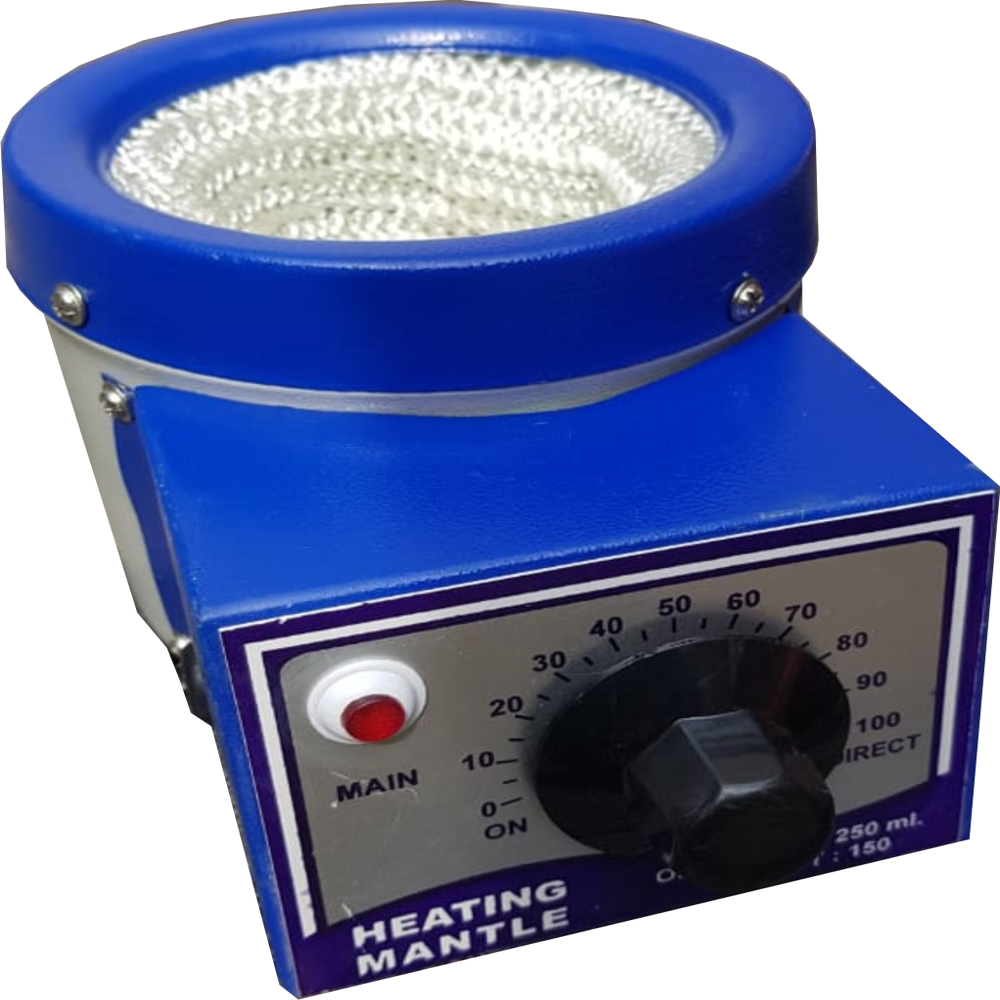

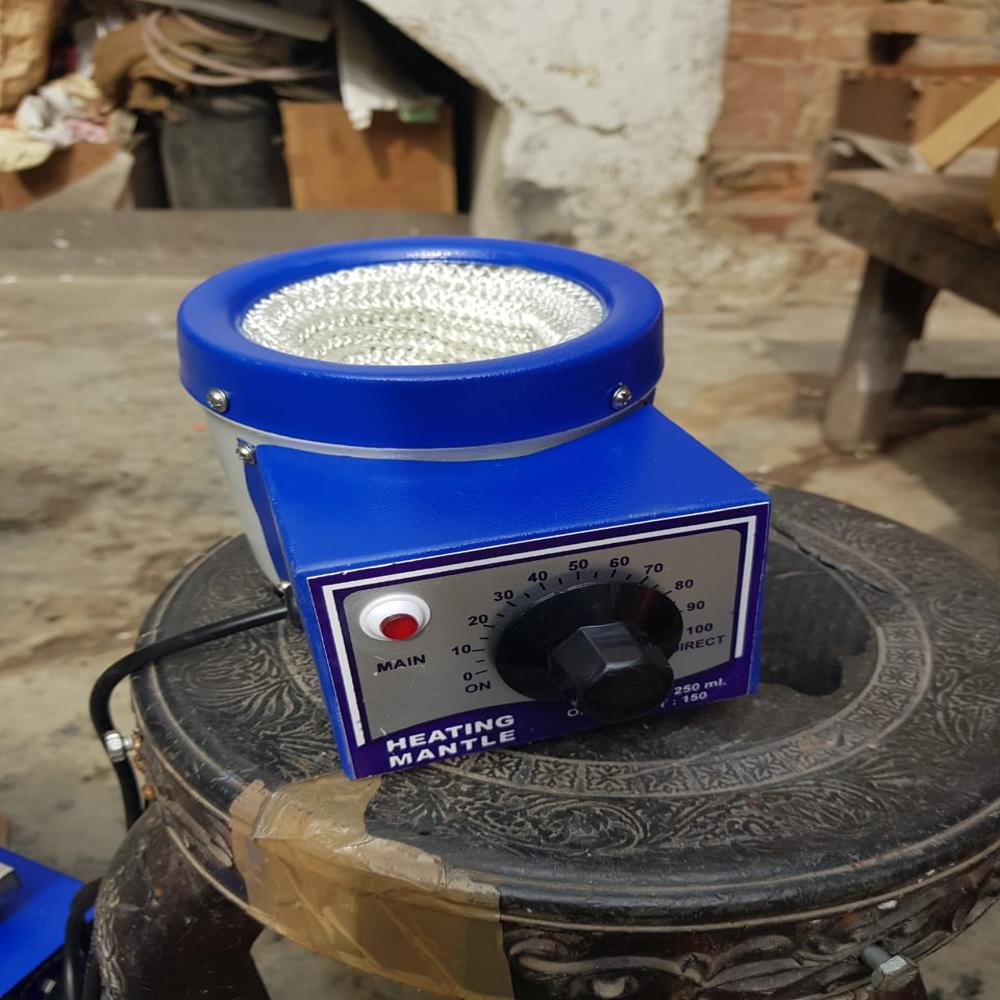

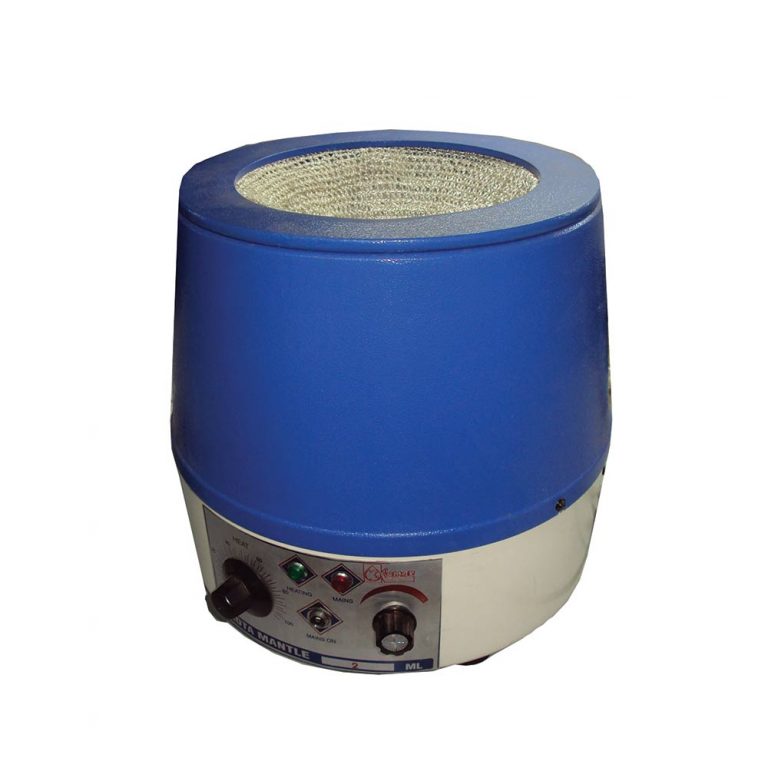

Aicil Rota Mantle 1000ml

Name: Aicil Rota Mantle 1000ml
Brand: Sterling India
Price: 16000.0 INR
Availability: InStock

Price 16000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Rota Mantle 1000ml Specification

Accuracy
2C

Display Type
Analog

Glass Type
Borosilicate Glass

Power Supply
AC Mains

Temperature Resistance
Up to 380C

Speed Range
100-1500 rpm

Shape
Round Flask Mantle

Control Type
Dual Knob (Separate for Heat and Stirring)

Heating Capacity
1000 ml

Features
Uniform Heating, Variable Speed, Safe Handling

Type
Magnetic Stirrer with Heating Mantle

Dimension (L*W*H)
Approx. 220 x 240 x 300 mm

Equipment Type
Electric Laboratory Equipment

Equipment Materials
Mild Steel Powder Coated Body

Power
500 W

Voltage
220-240 V AC

Material
Aluminum Housing, High-Grade Glass

Application
Laboratory Use for Heating and Stirring Solutions

Capacity (Ltr)
1000 ml

Safety Features
Thermal Fuse, Overheat Protection

Compliance
CE Marked

Stirring Bar Included
Yes

Operating Environment
Indoor, Laboratory Grade

Weight
Approx. 3 kg

Suitable Flask Types
Flat & Round Bottomed Flasks

Color
White & Blue

Insulation Material
Glass Wool

Plug Type
Standard 3-Pin

Heating Element Type
Nichrome Wire

Max Continuous Operation Time
8 hours

About Aicil Rota Mantle 1000ml

ROTAMANTLES are specially designed to meet laboratory requirement of convenient stirring in flask with simultaneous uniform heating by mantles. A combination of heating Mantle cum Magnetic stirrer to obtain heating and stirring in round bottom flasks. These have two tier construction with the upper compartment consisting of heating mantle woven out of fibre glass yarn and fitted with heating element. These are insulated by glass wool to eliminate heat loss and transfer of heat to motor compartment thereby protecting the motor and controls. These are smooth running apparatus utilizing the rotating magnetic field from a balanced permanent magnet to induce variable stirring action and uniform heating in closed open or flat bottom round flask The stirring is accomplished by a small Teflon coated magnetic paddle to be placed in the flask. The stirrer speed and heating energy is controlled by stepless speed and energy regulators respectively

Reliable Dual-Function Laboratory Tool

The Aicil Rota Mantle 1000ml combines powerful heating with efficient magnetic stirring, perfect for laboratory applications requiring uniform solution mixing and accurate temperature control. Its dual knob design allows for independent adjustment of heat and stir speed, accommodating a variety of experimental needs. Recommended for use in pharmaceutical labs, research institutes, and educational settings.

Advanced Safety and Build Quality

Engineered for safe operation, this mantle incorporates a thermal fuse and overheat protection to prevent accidents during extended use. The mild steel body is powder-coated for durability, and the insulation utilizes high-grade glass wool, reducing heat loss while ensuring safe external handling and consistent heating performance.

FAQ's of Aicil Rota Mantle 1000ml:

Q: How do I safely operate the Aicil Rota Mantle 1000ml?

A: To ensure safe use, connect the mantle to a standard 3-pin AC mains supply, use indoors in a laboratory setting, and select your desired heat and stirring speed using the dual knobs. Do not exceed the maximum continuous operation time of 8 hours, and always use compatible flat or round bottom borosilicate flasks.

Q: What types of flasks can be used with this mantle?

A: The mantle is designed to accommodate both flat and round bottomed borosilicate glass flasks with up to 1000ml capacity, allowing flexibility for various laboratory procedures.

Q: When should I use the stirring bar included with the mantle?

A: Insert the stirring bar into the flask before placing the flask on the mantle when you need to continuously mix your solutions, such as during chemical reactions, titrations, or solvent dissolutions. The mantle's variable speed ensures thorough and controlled mixing.

Q: Where is this equipment best suited for use?

A: This magnetic stirrer with heating mantle is suitable for indoor laboratory environments, including educational labs, research facilities, and quality control departments, where precise heating and stirring are required.

Q: What are the advantages of the safety features included?

A: The integrated thermal fuse and overheat protection provide enhanced safety by automatically cutting off power if the mantle overheats, minimizing the risk of equipment damage or laboratory accidents during unattended use.

Q: How accurate is temperature control on this device?

A: The Aicil Rota Mantle offers a temperature accuracy of 2C, controlled via an analog display and dual knob system, enabling precise heating for sensitive procedures.

Q: What benefits does the construction material offer?

A: With an aluminum housing, powder-coated mild steel body, and glass wool insulation, this mantle ensures durability, excellent heat retention, and user safety, making it a reliable choice for rigorous laboratory demands.
