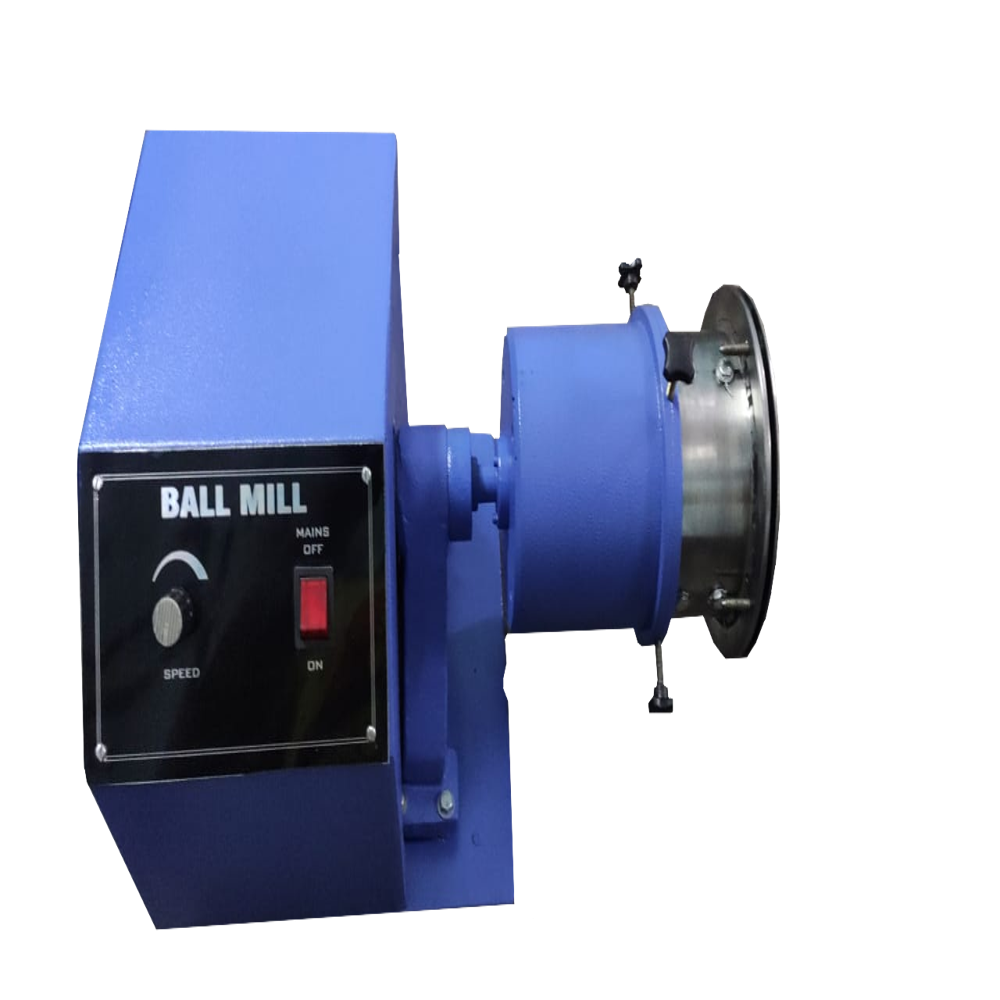

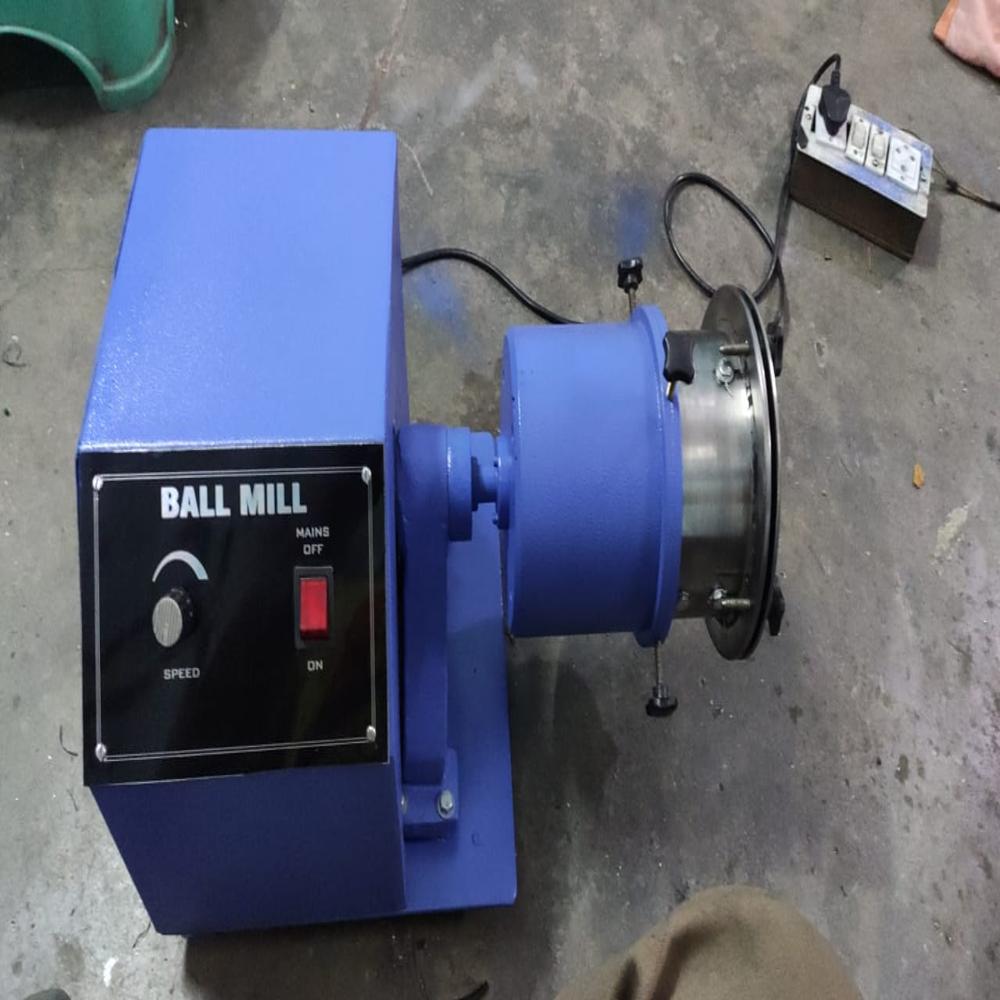

Aicil Ball Mill 20.0 kg

Name: Aicil Ball Mill 20.0 kg
Brand: Sterling India
Price: 39000.0 INR
Availability: InStock

Price 39000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Ball Mill 20.0 kg Specification

Display Type
No Digital Display, Manual Controls

Temperature Resistance
Standard Operation, Not Specialized for High-Temp Processes

Features
Heavy Duty, Easy Operation, Durable Construction, Enclosed Jar

Control Type
Manual Knob & Switch

Shape
Rectangular Main Body with Cylindrical Rotating Jar

Speed Range
Variable Speed (Controller Included)

Power Supply
Single Phase 220V AC

Accuracy
Consistent Particle Size Distribution

Type
Ball Mill

Dimension (L*W*H)
Custom (Contact supplier for detailed dimensions)

Equipment Type
Bench-Top Ball Mill

Equipment Materials
Mild Steel (Body), Stainless Steel (Jar)

Power
0.5 HP Motor

Voltage
220V/50Hz AC Supply

Material
Mild Steel/Stainless Steel

Application
Grinding, Mixing, Laboratory/Industrial Use

Capacity (Ltr)
20.0 kg (Approximate jar holding capacity)

Safety Features
Overload Cut-Off, Enclosed Jar for Safety

Jar Material
Stainless Steel/Optional Ceramic

Usage Area
Pharmaceuticals, Chemistry, Paint, Cement, Ceramics & Research Labs

Indication
Power ON/OFF Switch with Light Indicator

Finish
Powder Coated Corrosion Resistant Body

Jar Locking Mechanism
Clamping with Safety Lock

Drive Mechanism
Belt Drive System

Noise Level
Low Noise Operation

Maintenance
Low Maintenance, Easily Serviceable

Ball Media
Compatible with Ceramic or Stainless Steel Balls

Installation
Bench Mounted

Aicil Ball Mill 20.0 kg Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Aicil Ball Mill 20.0 kg

The grinding bowls with material and balls rotate around their own axis on a counterrotating supporting disc. The centrifugal forces caused by the rotation of the grinding bowls and supporting discs work on the contents of the grinding bowls. The force resulting from rotation of the grinding bowl when the mill is started causes the rotating balls to rub against the inside wall of the bowl thus crushing the material. At a certain point in time the stronger centrifugal force of the supporting disc causes the grinding material and balls to separate from the inner wall of the grinding bowl. The grinding balls cross the bowl at high speeds impacting with the grinding material on the opposite wall - creating size reduction by impact.

Versatile Grinding and Mixing Performance

The Aicil Ball Mill excels in grinding and mixing a wide array of materials, accommodating both ceramic and stainless steel ball media for flexibility. Its variable speed control ensures precision in particle size distribution, making it reliable for research, product development, and quality control tasks in numerous industries.

Engineered for Safety and Convenience

Designed with user safety in mind, the mill features a secure clamping system with a safety lock, an enclosed milling jar, and an overload cut-off. A clear on/off power switch with light indicator provides operational status, reducing accidental starts and improving overall laboratory safety.

Reliable, Low-Maintenance Operation

This ball mill's simple belt drive system requires minimal upkeep and ensures trouble-free performance. Its powder-coated body resists corrosion, while the easily serviceable construction allows for efficient maintenance routines, maximizing uptime and prolonging equipment life.

FAQ's of Aicil Ball Mill 20.0 kg:

Q: How does the Aicil Ball Mill ensure safe operation during use?

A: The mill incorporates an enclosed jar design, clamping with a safety lock, and an overload cut-off feature to prevent accidents during operation. The power on/off switch with a light indicator further enhances user safety by clearly showing the device's operational status.

Q: What materials can be processed with this ball mill?

A: This ball mill is compatible with both ceramic and stainless steel ball media, making it suitable for grinding and mixing pharmaceuticals, chemicals, powders, paints, cements, ceramics, and various laboratory materials.

Q: When is maintenance required and how easy is it to service the unit?

A: Thanks to its low-maintenance design and easily serviceable layout, routine checks and servicing can be performed as needed, typically aligned with usage frequency. Access to components is straightforward, minimizing downtime and ensuring long-term reliability.

Q: Where is the ideal setting for installing the Aicil Ball Mill?

A: Ideal for bench-mounting, the ball mill fits perfectly in laboratory and research environments, as well as small-scale industrial setups. Its powder-coated, corrosion-resistant finish and low noise profile make it suitable for clean and controlled spaces.

Q: What is the process for changing the jar material?

A: Jar material can be switched by ordering the optional ceramic jar in place of the standard stainless steel version. Both jars are designed for easy removal and secure fitting thanks to the clamping mechanism, supporting diverse laboratory protocols.

Q: What are the main benefits of using this ball mill for laboratory applications?

A: Key benefits include reliable, consistent particle size distribution, low noise operation, robust safety features, and easy manual control, making it especially valuable for research, development, and quality testing in professional laboratory settings.

Q: How is speed controlled and what is the range available?

A: Speed is adjusted manually with a knob controller, enabling variable speed operation. This allows precise tuning to achieve optimal grinding and mixing results for different sample types and experimental requirements.
