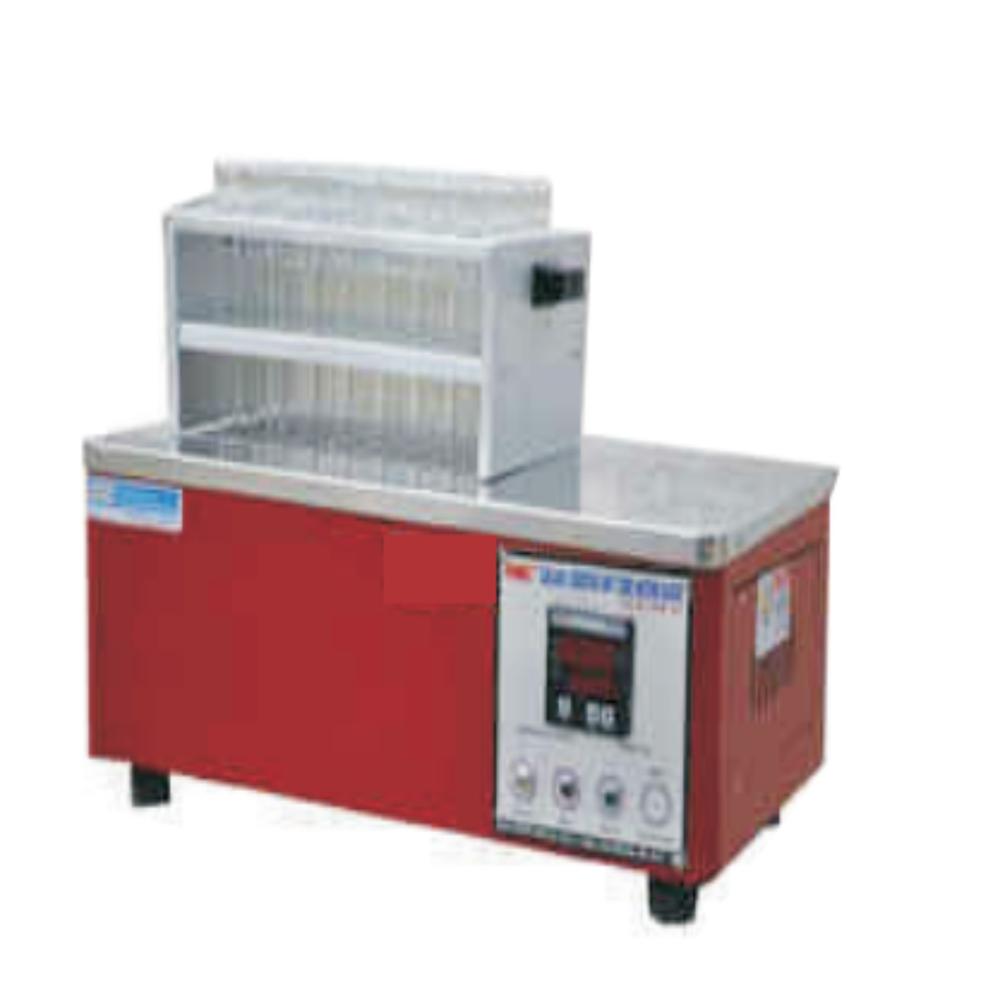

Aicil Kjeldahl Dry Block Digestor 40 Holes

Send Inquiry

Request To Call Back

Aicil Kjeldahl Dry Block Digestor 40 Holes

Name: Aicil Kjeldahl Dry Block Digestor 40 Holes
Brand: Sterling India
Price: 56000.0 INR
Availability: InStock

Price 56000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Kjeldahl Dry Block Digestor 40 Holes Specification

Temperature Resistance
Up to 450C

Control Type
Digital PID Temperature Controller

Heating Capacity
Up to 450C

Display Type
Digital LED Display

Accuracy
1C

Features
Uniform block heating, acid-resistant block, easy maintenance, energy efficient, overheat protection

Power Supply
230 V AC

Shape
Rectangular

Type
Kjeldahl Dry Block Digestor

Dimension (L*W*H)
600 x 350 x 270 mm

Equipment Type
Laboratory Digestor

Equipment Materials
Powder coated Mild Steel

Power
1000 W

Voltage
230 V AC, 50 Hz

Material
Mild Steel, Inner Aluminium Block

Application
Digestion of samples for nitrogen determination, protein analysis, laboratory chemical processing

Compatible Tube Size
38 mm Diameter x 250 mm Height

Number of Holes
40 Holes

Standard Accessories
Tube rack, instruction manual, power cord

Block Material
Aluminium

Operation
User-friendly, easy loading/unloading of tubes

Weight
Approx. 25 kg

Finish
Chemical and corrosion resistant finish

Insulation
High-Grade Mineral Wool

Installation
Table Top

Safety
Over Temperature Protection, Auto Cut-Off

Temperature Range
Ambient to 450C

Heating Element Type
Ceramic Insulated

Timer
Digital with programmable settings

Compliance
ISO, CE Certified

About Aicil Kjeldahl Dry Block Digestor 40 Holes

Casted top with room for heating 40 digestion tubes each of size 24mm (dia) x 250 mm (long). Heating elements are spread uniformly in the entire block. Temperature range Is upto 450C. Fitted with microprocessor based digital temperature controller. Also available with inbuit timer to control the temperature.

Designed for Laboratory Efficiency

This dry block digestor simplifies digestion processes by allowing up to 40 samples simultaneously, improving workflow in busy labs. The easy-loading mechanism and user-friendly controls make operation straightforward, reducing preparation and clean-up time for technicians.

Robust Construction Ensures Durability

Built with a powder-coated mild steel body and an inner aluminium block, the digestor ensures acid resistance and long-term stability. High-grade mineral wool insulation enhances energy efficiency, while the chemical-resistant finish guards against laboratory wear and tear.

Accurate and Safe Sample Processing

Achieve precise results with a digital PID temperature controller offering 1C accuracy. The system's programmable timer and overheat protection deliver consistent, safe performance, making it ideal for critical laboratory protocols involving protein and nitrogen analysis.

FAQ's of Aicil Kjeldahl Dry Block Digestor 40 Holes:

Q: How do I operate the Aicil Kjeldahl Dry Block Digestor for sample digestion?

A: To operate the digestor, load up to 40 compatible tubes (38 mm diameter x 250 mm height) into the aluminium block. Set the desired temperature and timer using the digital PID controller and programmable digital timer. The easy-loading mechanism simplifies insertion and removal of tubes. The unit will heat up, digest the samples, and automatically shut off upon completion or if an over-temperature condition is detected.

Q: What type of samples and applications is this digestor suited for?

A: The digestor is primarily used for the digestion of samples in nitrogen determination and protein analysis, following the Kjeldahl method. It is also suitable for various laboratory chemical processing applications that require controlled, uniform heating of samples.

Q: When should I use the over temperature protection feature?

A: The over temperature protection feature is always active, safeguarding the unit and samples from heat damage. It functions automatically, cutting off the heating system if the set temperature exceeds the safety threshold, making continuous supervision unnecessary during operation.

Q: Where should the digestor be installed in the laboratory?

A: Designed as a table top unit, the digestor should be positioned on a stable, flat laboratory bench that can support approximately 25 kg. Ensure the area is close to a compatible 230 V AC power supply and well-ventilated to maintain laboratory safety standards.

Q: What is the process for cleaning and maintaining the block digestor?

A: Allow the digestor to cool completely before cleaning its surface with a mild, non-abrasive cleaner. Regularly check the aluminium block and tube rack for residue or buildup, and refer to the instruction manual for specific maintenance routines. The acid-resistant block and chemical-resistant exterior make maintenance straightforward.

Q: How does the digital PID temperature controller benefit laboratory work?

A: The digital PID temperature controller ensures precise temperature regulation with 1C accuracy, which is vital for reproducibility and reliability in sensitive analyses like protein and nitrogen determination. It allows programmable settings for more efficient, automated workflows.

Q: What standard accessories come with the Aicil Kjeldahl Dry Block Digestor?

A: Each unit is supplied with a tube rack, instruction manual, and power cord as standard accessories, providing users with essential components to begin digestion processes immediately upon installation.
