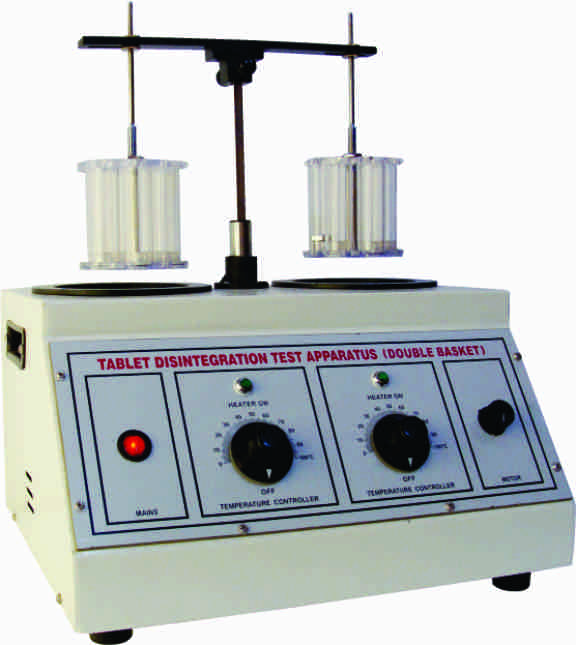

Aicil Tablet Disintegration Test Apparatus

Name: Aicil Tablet Disintegration Test Apparatus
Brand: Sterling India
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Tablet Disintegration Test Apparatus Specification

Usage
Testing the disintegration time of tablets and capsules

Color
White

Weight
Approx. 10-15 kg

Application
Pharmaceutical Industry, Laboratory Use

Operate Method
Manual/Automatic Switch Control

Dimension (L*W*H)
Approx. 400 x 300 x 350 mm

Power
230 V AC, 50 Hz

Material
Stainless Steel & Powder Coated Body

Product Type
Tablet Disintegration Test Apparatus

Capacity
Double Basket

Classification
Laboratory Instrument

Voltage
230 V

Water Bath
Double walled, insulated

Conformance
Complies to IP/USP Standards

Timer
Digital Timer with Automatic Stop

Temperature Range
Ambient to 45C

Heater
Immersion type

Number of Baskets
2 (Double Basket Type)

Display
LED Indicators for Heater & Water Control

Basket Material
Transparent Acrylic/Polycarbonate

Temperature Control
Digital Temperature Controller

Safety Features
Over Temperature Protection

Other Features
Smooth silent operation, easy maintenance

About Aicil Tablet Disintegration Test Apparatus

A tablet disintegration test apparatus is a pharmaceutical device that evaluates how quickly tablets or capsules break apart into smaller granules when submerged in a liquid medium, simulating the conditions in the human body. The apparatus features a mechanical arm that moves a basket rack assembly containing tablet-filled tubes up and down in a temperature-controlled water bath. Integrated timers and temperature displays monitor the test, with users recording the time it takes for the tablets to fully disintegrate, ensuring the drug's effectiveness and quality.

Precise Double Basket Design

Engineered with two transparent, durable baskets, this apparatus allows simultaneous testing of multiple samples, enhancing productivity and consistency. Its double basket configuration ensures uniform conditions and reliable results, making it a preferred choice for pharmaceutical laboratories conducting compliance tests.

Advanced Temperature Control Technology

Equipped with a digital temperature controller and an immersion heater, the apparatus maintains accurate bath temperatures from ambient to 45C. Over-temperature protection and LED status indicators provide both safety and operational clarity, reducing the margin for error during sensitive testing procedures.

User-Friendly Operation and Maintenance

Featuring manual/automatic switch control and a silent, smooth mechanism, the apparatus is simple to operate and easy to maintain. The stainless steel and powder-coated construction provides durability, while the compact double-walled insulated bath supports efficient use in various laboratory settings.

FAQ's of Aicil Tablet Disintegration Test Apparatus:

Q: How is the Aicil Tablet Disintegration Test Apparatus operated?

A: The apparatus can be operated using manual or automatic switch control, making it user-friendly. Users simply set the desired parameters on the digital timer and temperature controller, load the baskets with samples, and commence the test. The automatic stop feature ensures precise operation.

Q: What is the primary use of this apparatus in laboratories?

A: This device is designed to test the disintegration time of tablets and capsules, which is critical for quality control and compliance with pharmaceutical standards. Its double basket system allows concurrent testing, improving efficiency in routine laboratory work.

Q: When should I perform calibration or maintenance?

A: Regular calibration and maintenance are recommended as per laboratory protocols or after extended periods of usage. Easy maintenance features and robust materials support frequent use, while smooth operations help minimize downtime.

Q: Where can this apparatus be utilized effectively?

A: The apparatus is ideal for pharmaceutical manufacturing laboratories, research institutes, and quality control labs needing to comply with IP/USP disintegration standards. Its compact size and insulated design fit well in a wide range of lab environments.

Q: What processes does the apparatus automate or simplify?

A: It automates temperature control, timing, and basket movement for disintegration tests, ensuring repeatable and accurate results. The device's automatic stop and indicator system streamline workflows and minimize manual intervention.

Q: What are the benefits of the double basket and transparent material?

A: The double basket increases testing throughput and consistency, while the transparent acrylic/polycarbonate enables easy observation of disintegration during testing, improving accuracy in result interpretation.
