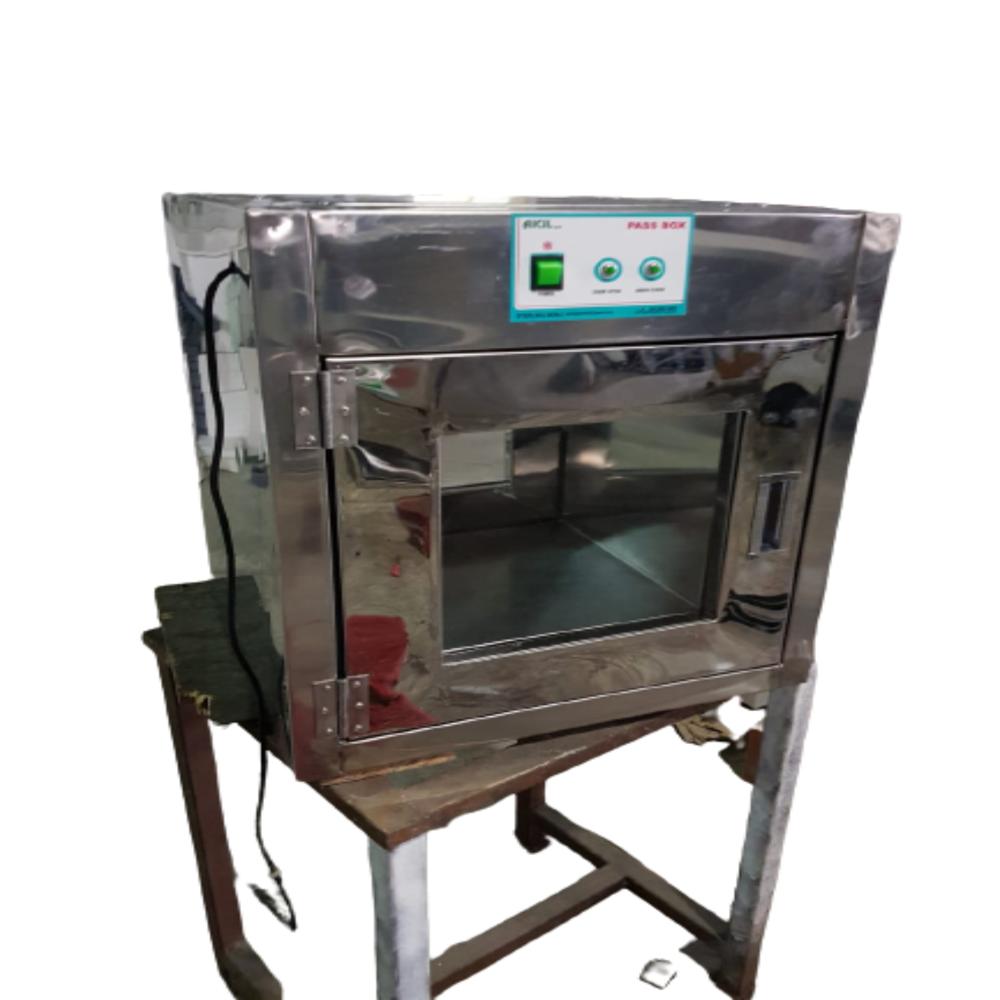

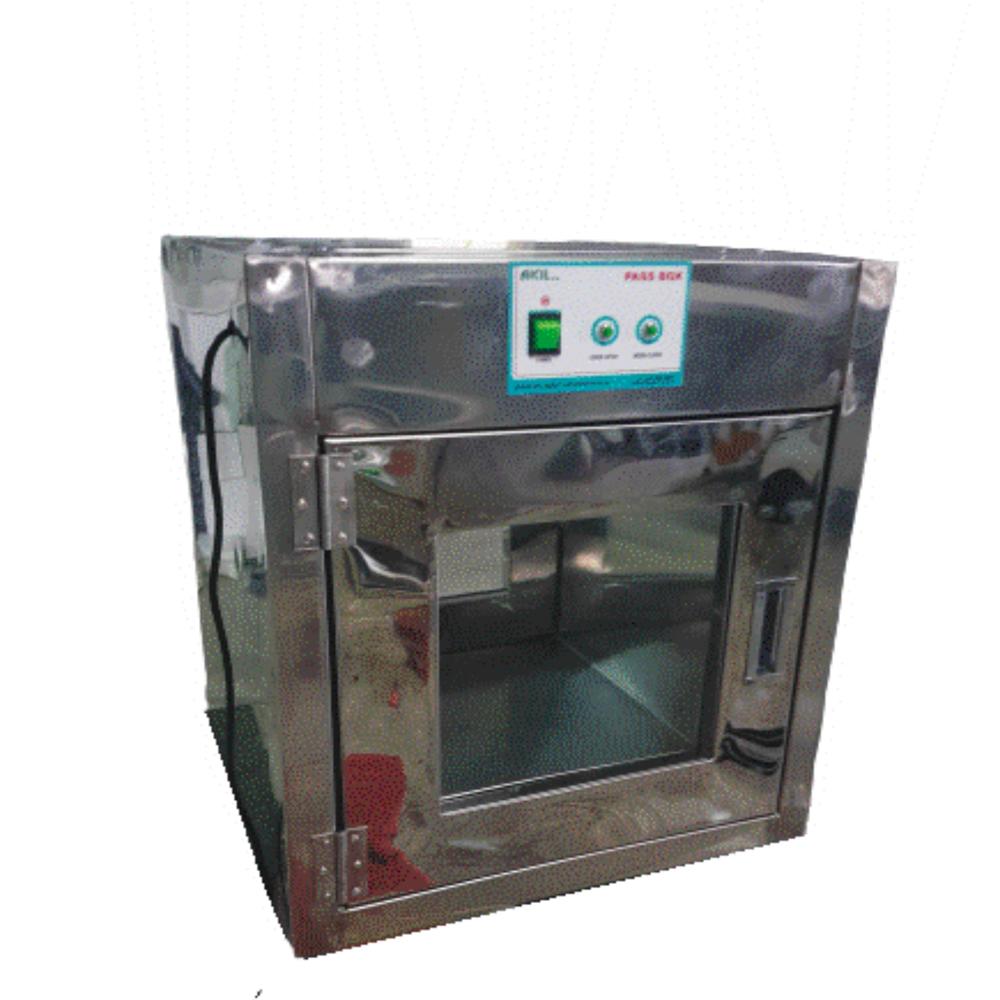

Aicil Pass Box Static 24"X24"X24"

Name: Aicil Pass Box Static 24"X24"X24"
Brand: Sterling India
Price: 75000.0 INR
Availability: InStock

Price 75000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Aicil Pass Box Static 24"X24"X24" Specification

Filters
Not Applicable for Static Pass Box

Material
Stainless Steel (SS 304)

Features
Double door with glass viewing panel, Door Interlock, SS Construction, Clean room compatible finish

Filtration Property
Not Equipped, Static

Application
Material transfer between clean rooms

Control System
Interlock System (Manual/Electronic)

Pressure Range
Atmospheric

Installation Type
Table/Wall Mounted

Maintenance Type
Low Maintenance

Energy Consumption
Zero (Static type)

Equipment Type
Static Pass Box

Color
Metallic Mirror Finish

Noise Level
Below 60 dB

Automatic Grade
Manual

Capacity
Standard

Dimension (L*W*H)
24 x 24 x 24 (Inches)

Weight
Approx. 25-35 Kg

Finish Type
Matt/Smooth Mirror Finish

Inside Chamber Light
Optional (UV/CFL as per request)

Window
Toughened Glass

Manufactured By
Aicil

Door Type
Double Door with Glass Pane and SS Handle

Door Lock Mechanism
Mechanical/Electro-Magnetic Interlock System

Clean Room Suitability
ISO Class 5 and above

Mounting
Flush Mounting with Clean Room Panel

Usage
Pharma, Research Labs, Hospitals, Microelectronics

About Aicil Pass Box Static 24"X24"X24"

static cabinet is fabricated of CRC duly powder coated or stainless steel (SS304) as ordered. it is a rectangular compartment with two doors at its extreme. it helps in achieving the aim of material transfer without disturbing the cleanliness level of the room. hinged doors are provided with a glass viewing window through which the material kept for transfer can be seen. one of the doors opens in the clean room where as the other door opens in the other room. these doors are electrically inter-locked type so that only one door can be opened at a time. this avoids direct flow of air from the clean room to the other room or vice - versa. this also prevent the need to open the clean room door frequently for transferring of material from and the clean room. so that. it helps in fulfilling the purpose of material transfer without disturbing the cleanliness level of the clean room.

High-Standard Cleanroom Compatibility

The Aicil Static Pass Box meets ISO Class 5 and higher requirements, ensuring exceptional cleanliness in sensitive environments like pharmaceuticals, research facilities, and hospitals. Its robust SS 304 construction provides both durability and ease of maintenance, while the mirror/matt finish is engineered for consistent performance and seamless integration with various cleanroom setups.

Advanced Safety and Interlock Mechanisms

Equipped with a double-door configuration and glass panels, the pass box features mechanical or electronic interlock systems to prevent simultaneous door opening. This guarantees the secure and contamination-free transfer of materials, improving workflow safety and regulatory compliance within controlled spaces.

Customizable and Low Maintenance Design

Choose between optional UV or CFL inside chamber lights to match your operational needs. The flush-mounted, cleanroom-compatible build ensures easy cleaning, minimal upkeep, and optimal space efficiency. The static pass box is energy-efficient-relying on zero power for operation-making it an eco-friendly and economical choice.

FAQ's of Aicil Pass Box Static 24"X24"X24":

Q: How does the interlock system of the Aicil Pass Box ensure contamination control?

A: The Aicil Pass Box is equipped with a mechanical or electro-magnetic interlock system that prevents both doors from opening at the same time, effectively blocking cross-contamination between two clean areas during material transfer.

Q: What environments and applications are best suited for this static pass box?

A: This pass box is ideal for ISO Class 5 and above cleanrooms, and is commonly used in pharmaceutical sites, research labs, hospitals, and microelectronics where strict cleanliness standards and secure material transfer are required.

Q: What are the benefits of toughened glass doors with SS handles and mirror finish?

A: Toughened glass provides enhanced safety and durability, while stainless steel handles and a smooth/mirror finish allow for easy cleaning and resistance to corrosion-ensuring long-term reliability and hygiene within clean environments.

Q: Can the internal chamber lighting be customized for different operational needs?

A: Yes, users can request either UV or CFL lights for the inside chamber, providing flexibility for material sterilization or visibility as your protocol demands.

Q: Where can the Aicil Pass Box be installed in a facility?

A: This pass box is suitable for both flush wall and table mounting within cleanroom panels, allowing for versatile positioning to facilitate efficient material transfer according to workflow requirements.

Q: What is the maintenance and energy requirement for this pass box?

A: The unit is designed for low maintenance due to its robust stainless steel build, and it operates with zero energy consumption as a static type, making it a cost-effective solution for facilities prioritizing efficiency.
