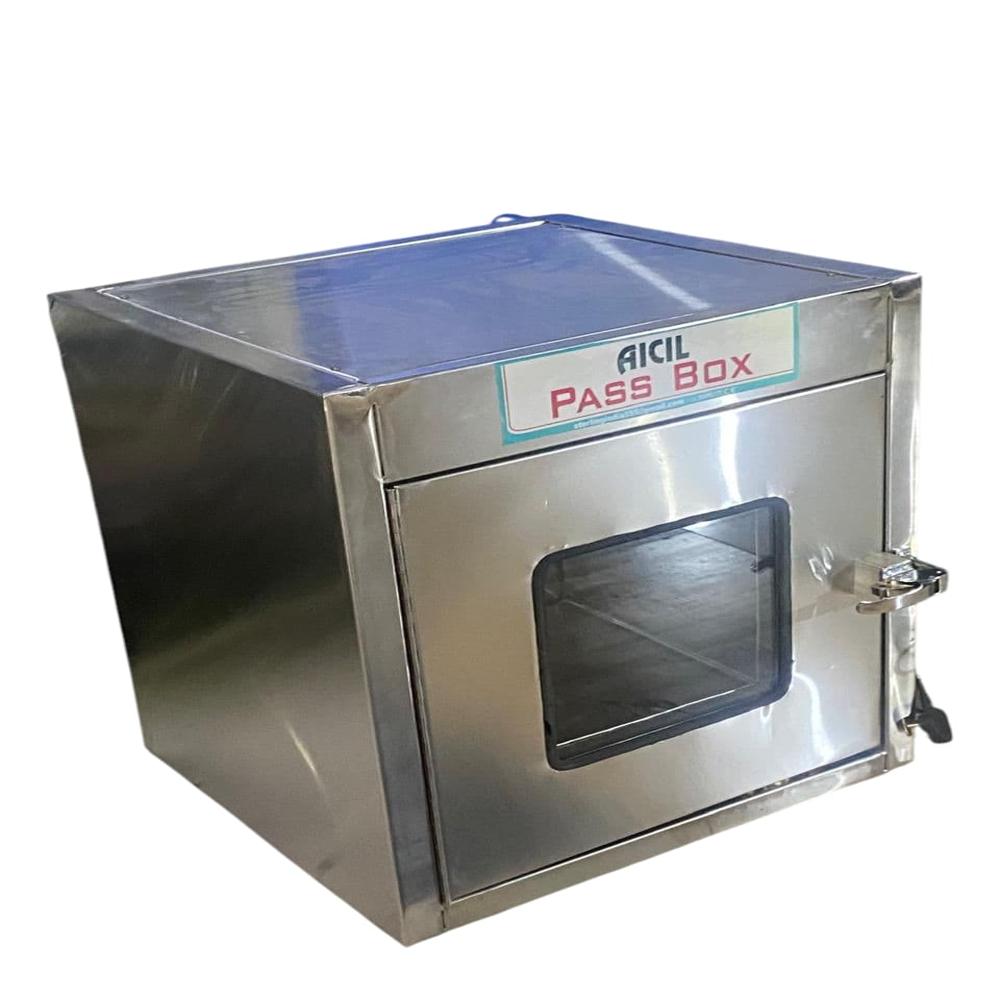

Aicil Pass Box Dynamic 24"X24"X24"

Name: Aicil Pass Box Dynamic 24"X24"X24"
Brand: Sterling India
Price: 75000.0 INR
Availability: InStock

Price 75000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Pass Box Dynamic 24"X24"X24" Specification

Frequency
50 Hz

Dust
Minimal, clean transfer

Dust %
Less than 1%

Features
Interlocking doors, Indicator lights, Viewing window, Smooth finish

Color
Metallic / Stainless steel finish

Ventilation
Forced ventilation with fan

Energy Consumption
Low, typically < 50W

Control System
Microprocessor based or manual relay

Hole Size
No holes, solid construction

Filtration Property
HEPA (High-Efficiency Particulate Air)

Pressure Range
Low pressure, suitable for cleanroom transfer

Filters
HEPA Filter (optional Pre-Filter)

Maintenance Type
Easy access for filter/service

Noise Level
<65 dB

Output
Dynamic air quality transfer

Connectivity Type
N.A. (not a networked device)

Application
Laboratory, Pharmaceutical, Cleanroom, Healthcare, Electronics Industries

Material
Stainless Steel (SS 304/316)

Humidity %
Ambient, as per installation site

Efficiency (%)
99.99% at 0.3 micron (for HEPA filter)

Equipment Type
Dynamic Pass Box

Flow Rate
Adjustable to application type

Installation Type
Floor mounted/Table Top

Automatic Grade
Semi-Automatic

Capacity
Suitable for 24 x 24 x 24 workspace

Power
230V, Single Phase

Voltage
230V AC

Dimension (L*W*H)
24 x 24 x 24 (inches)

Weight
Approx. 35-40 kg

Door Opening
180 degrees with strong hinge

Operation Panel
External with indicator LED

Internal Lighting
LED (optional)

Surface Finish
Matt/Mirror polish as per client demand

Cleanroom Class Compliance
ISO Class 5/6

Window Material
Transparent tempered glass

Portability
Yes, compact and easy to relocate

Construction
Double-walled, insulated, and leak-proof

Gasket
Silicon/PVC for air-tight sealing

Door Interlock Type
Electro-mechanical/Mechanical interlock system

Service Access
Front/side panel removable

UV Light
Optional

About Aicil Pass Box Dynamic 24"X24"X24"

Pass box Dynamic Unit basides the above details of static unit these dynamic units are specially designed pass boxes fitted with HEPA filter and motor blower unit. the motor blower unit automatically starts at the time of opening any of the door. This complate setup acts as a pressure chamber and only clean air enters the clear room thus maintaining the cleanliness level of the room.

Unmatched Safety with Electro-mechanical Interlock

The Aicil Pass Box Dynamic ensures safety using advanced electro-mechanical or mechanical door interlocks, preventing both doors from opening simultaneously. This preserves cleanroom pressure integrity and eliminates cross-contamination during material transfers.

Superior Visibility and Air Quality Control

Featuring a transparent tempered glass window, users maintain full visibility during operations. The integrated HEPA filtration system (with optional pre-filter) guarantees up to 99.99% particle removal at 0.3 microns, delivering pure, contaminant-free air for sensitive processes.

Flexible Installation and Maintenance

This pass box can be floor-mounted or used as a table-top unit. Front and side panels are removable, allowing easy access for servicing filters or internal components. Its compact build supports effortless relocation within the facility.

FAQ's of Aicil Pass Box Dynamic 24"X24"X24":

Q: How does the electro-mechanical or mechanical interlock system operate in the Aicil Dynamic Pass Box?

A: The interlock system ensures that only one door can be opened at a time, using either an electro-mechanical or a purely mechanical mechanism. This safety feature minimizes the risk of air contamination by preventing both doors from being open simultaneously.

Q: What are the key benefits of the double-walled, insulated, leak-proof construction?

A: The double-walled, insulated, and leak-proof design offers robust durability, supports consistent environmental control, and helps maintain strict cleanroom compliance by preventing leaks or ingress of unfiltered air during material transfer.

Q: When should I use the optional UV light and internal LED lighting features?

A: The optional UV light can be activated for sterilizing the pass box's internal surfaces between transfers, enhancing microbiological safety. Internal LED lighting is useful for ensuring clear visibility when handling sensitive materials inside the pass box.

Q: Where is the best placement for installing this pass box in my facility?

A: The pass box is versatile and can be installed either floor-mounted or on a table top, typically at the interface between a cleanroom and an adjacent non-sterile environment or between two classified rooms, ensuring controlled and contamination-free material transfer.

Q: What is the recommended process for regular maintenance and filter replacement?

A: Scheduled maintenance involves removing the front or side service panels for easy access to filters and internal components. Filter replacement, especially for the optional HEPA or pre-filter, ensures continued high-efficiency filtration and protects cleanroom standards.

Q: How does the pass box contribute to cleanroom compliance and safety?

A: Complying with ISO Class 5 and 6 standards, the pass box utilizes HEPA filtration and forced ventilation to reduce dust to less than 1%, supports low noise levels, and operates under low power, guaranteeing a safe, clean working environment for sensitive applications.

Q: What applications is the Aicil Dynamic Pass Box best suited for?

A: It is ideal for laboratories, pharmaceutical manufacturing, cleanrooms, healthcare facilities, and electronics industries-any environment where contamination control during material transfer is critical to operations.
