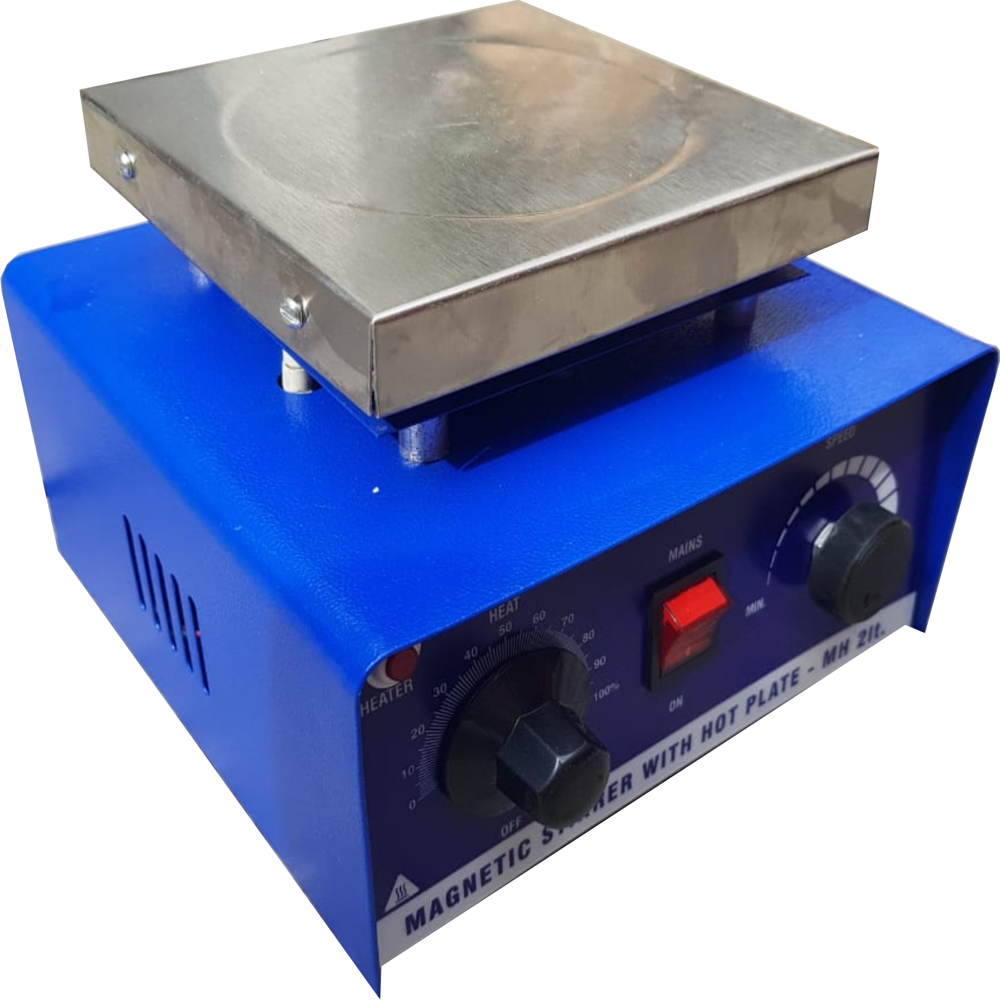

Aicil Magnetic Stirrer 2 LTR

Name: Aicil Magnetic Stirrer 2 LTR
Brand: Sterling India
Price: 5200.0 INR
Availability: InStock

Price 5200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Magnetic Stirrer 2 LTR Specification

Classification
Laboratory Equipment

Product Type
Magnetic Stirrer with Hot Plate

Voltage
220V AC, 50Hz

Power
180W

Operate Method
Manual (Rotary Knob control)

Application
Chemical, Biological, Pharmaceutical Laboratories

Dimension (L*W*H)
Approx. 28 x 18 x 14 cm

Usage
Mixing and stirring laboratory liquids

Capacity
2 Liters

Material
Powder Coated Steel Body, Stainless Steel Top Plate

Color
Blue Body, Silver Top Plate

Weight
Approx. 3.5 kg

Heating Range
Ambient to 120C (adjustable)

Noise Level
Low noise operation

Stirring Mechanism
Magnetic stir bar

Cooling System
Air vents for heat dissipation

Accessories Included
Magnetic stir bar

Safety Feature
Indicator light for power and heater

Display
Analog scale with rotary dials

Speed Range
100 - 1200 rpm (variable)

Control Type
Separate controls for heat and stirring speed

Top Plate Size
Approximately 15 cm x 15 cm

Plug Type
Standard 3-pin plug

About Aicil Magnetic Stirrer 2 LTR

Body is made of CRC duly powder coated & top platform made of stainless steel. A heavy duty PMDC motor imparts a higher initial torque for smooth and vibration free start at lower speeds as well as at higher speeds. variable speed of upto 1200 RPM is controlled through a stepless speed controller. Electrical/ heat energy is controlled through a energy regulator or digital temperature controller with in built timer & buzzer (Option). To work on 220/230 volts AC supply.

Precision Mixing and Heating

This magnetic stirrer offers variable stirring speeds and precise heating, making it suitable for complex laboratory applications. The separate control knobs for heat and stirring allow users to finely tune operations according to specific experimental needs, enhancing reproducibility and accuracy in mixing processes.

Sturdy Build and User-Safe Features

Constructed with a powder-coated steel body and a stainless steel top plate, the Aicil Magnetic Stirrer ensures longevity and resilience against laboratory conditions. Essential safety features, such as indicator lights for power and heating, help prevent accidents, while air vents keep the unit cool during prolonged usage.

Versatile Laboratory Application

With a 2-liter capacity and included magnetic stir bar, this stirrer is ideal for applications in chemical, biological, and pharmaceutical settings. Its low noise levels and compatibility with standard power supplies make it a versatile choice for various laboratory environments.

FAQ's of Aicil Magnetic Stirrer 2 LTR:

Q: How does the Aicil Magnetic Stirrer function for mixing and heating liquids?

A: The Aicil Magnetic Stirrer uses a magnetic stir bar placed inside the liquid vessel, driven by a rotating magnetic field transmitted from the base. It supports simultaneous mixing and heating, with separate rotary knobs for precise control of speed and temperature, allowing complete customization for laboratory protocols.

Q: What types of laboratory applications is this magnetic stirrer suitable for?

A: This stirrer is ideal for applications in chemical, biological, and pharmaceutical laboratories-where mixing and heating of solutions, buffers, or reagents are required. Its variable speed and adjustable temperature range accommodate diverse research and analytical processes.

Q: When should the heating function be used during operation?

A: The heating function should be activated when the user requires the solution to be maintained or brought to a specific temperature (up to 120C). The independent controls allow heating to be used alongside or separate from stirring, enabling flexible operation based on experimental requirements.

Q: Where can this stirrer be installed and used safely?

A: The Aicil Magnetic Stirrer is suited for laboratory environments with stable, level surfaces. It should be placed in well-ventilated areas to maximize the effectiveness of its air vents and prevent overheating during extended runs.

Q: What is the process for controlling the stirrer and heater functions?

A: Operation is manual via robust rotary knob controls for both stir speed and heater power. Simply plug in the standard 3-pin plug, place the vessel with the magnetic bar on the top plate, and adjust the respective dials to set stirring speed and heating as needed.

Q: How does the safety feature enhance the user's experience?

A: Indicator lights for both power and heating functions clearly show when the unit or the heater is active, reducing the risk of accidental burns or energy waste. Proper cooling through air vents further ensures safe and stable long-term operation.

Q: What are the benefits of using this particular model in laboratory settings?

A: Key benefits include reliable, low-noise mixing, easy-to-clean stainless steel surface, robust powder-coated construction, flexible operation thanks to variable controls, and enhanced safety features-all designed to facilitate efficient and precise lab work.
