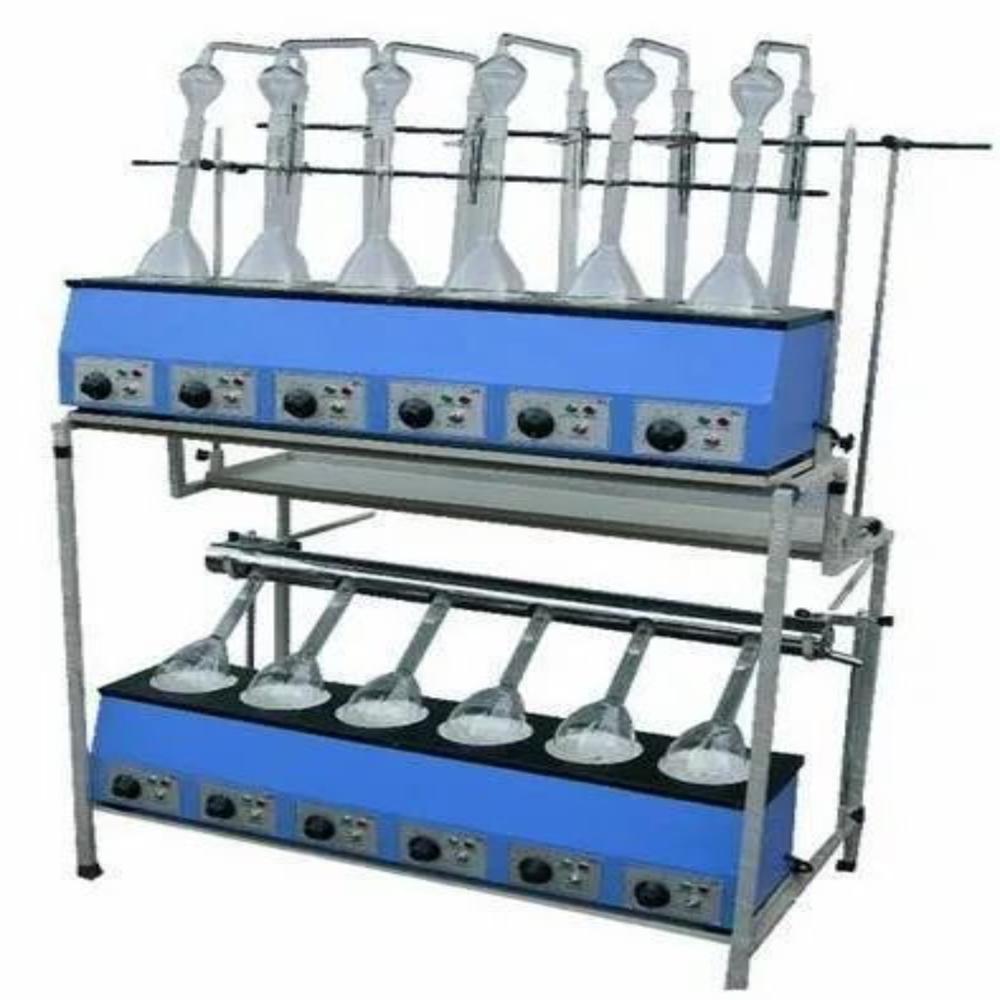

Aicil Kjeldahl Distillation & Digestion 6 Test

Name: Aicil Kjeldahl Distillation & Digestion 6 Test
Brand: Sterling India
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Kjeldahl Distillation & Digestion 6 Test Specification

Control Type
Individual Energy Regulators/Temperature Control Knobs

Power Supply
Electric, 220-240V AC, 50/60 Hz

Temperature Resistance
Up to 450C

Heating Capacity
Up to 450C

Shape
Rectangular Base with Circular Mantle Holders

Glass Type
Borosilicate Glass

Accuracy
2C (mantle heating)

Display Type
Analog (Dial based controls)

Features
Consists of 6 work stations for both digestion and distillation, independent temperature control, high chemical resistance, uniform heating, stable base, easy cleaning and maintenance

Type
Kjeldahl Distillation & Digestion Unit

Dimension (L*W*H)
Approx. 1200 mm x 500 mm x 1200 mm

Equipment Type
Laboratory Distillation & Digestion Apparatus

Equipment Materials
Mild Steel Powder Coated, Stainless Steel Stand, Heat Resistant Components

Power
2 x 1000W (each mantle), total 12 x 1000W

Voltage
220-240V AC, 50/60 Hz

Material
M.S. Powder Coated, Stainless Steel, Borosilicate Glassware

Application
For Nitrogen/Protein Determination by Kjeldahl Method in laboratories

Capacity (Ltr)
Typically 300500 ml per flask

Insulation
Glass Wool Insulation in Heating Mantles

Heating Element Type
Nichrome Wire Embedded in Ceramic Mantles

Burette Arrangement
Provision for supporting burettes and condensers

Safety Features
Heat resistant insulated handles, overheating protection

Stand Material
Stainless Steel with Rust Resistant Coating

Fume Duct Chamber
Integrated Stainless Steel Fume Duct Provided

Number of Units
6 Digestion + 6 Distillation (Dual Deck Model)

Sample Throughput
Up to 6 samples simultaneously in digestion and distillation stages

Mounting Type
Bench Mounted with Stand

Suitable For
Food, Feed, Fertilizer, Chemical and Research Labs

About Aicil Kjeldahl Distillation & Digestion 6 Test

Mantle type heating system. This is very useful for estimation of nitrogen content in the substance by digestion for 300 & 500 ml capacity flacks. Provided with fume duct and pair of hangers rating of each test 200 watts. supplied with or without glass parts & clamps. To work on 220/230 supply

Dual Deck Efficiency For High Throughput Labs

Designed for busy laboratories, this apparatus supports simultaneous digestion and distillation of up to six samples each, drastically improving workflow efficiency. Its dual deck construction allows parallel processes, minimizing wait times and supporting both routine and high-volume nitrogen or protein analysis.

Precision Heating and Safety

Nichrome wire embedded in ceramic mantles ensures consistent and uniform heating, vital for accurate Kjeldahl analysis. With glass wool insulation, heat resistant handles, and overheating protection, the unit prioritizes operator safety and precise temperature control for reliable results every time.

Robust Construction and Chemical Resistance

Manufactured from mild steel with powder coating and stainless steel, the equipment is both rust resistant and easy to clean. Borosilicate glassware and a high-grade stainless steel fume duct enhance its resilience to harsh chemicals, providing a long service life even in demanding laboratory environments.

FAQ's of Aicil Kjeldahl Distillation & Digestion 6 Test:

Q: How does the Aicil Kjeldahl Dual Deck Model improve laboratory workflow?

A: This unit allows up to six samples to be digested and distilled simultaneously on both decks, reducing overall analysis time and boosting laboratory productivity, making it ideal for high-throughput settings.

Q: What samples and applications is this apparatus suitable for?

A: It is specifically designed for nitrogen and protein determination in food, feed, fertilizer, chemical, and research labs, utilizing the established Kjeldahl method.

Q: When should I use the integrated fume duct chamber?

A: The stainless steel fume duct should always be used during both digestion and distillation to safely vent chemical fumes, ensuring your laboratory remains safe and compliant with safety standards.

Q: Where should the unit be installed for optimal operation?

A: The bench-mounted design is best installed on a stable laboratory bench with access to 220-240V AC power, ensuring proximity to ventilation for efficient fume extraction.

Q: What are the steps involved in the Kjeldahl process using this equipment?

A: First, samples are placed in the digestion mantles with relevant chemicals, then heated to decompose organic material. After digestion, the samples are transferred to the distillation mantles where ammonia is distilled off, collected, and quantified.

Q: How do the safety features benefit users in daily operation?

A: Heat resistant handles, overheating protection, and rust-resistant coatings protect users from burns and prolong the unit's lifespan, enabling safe and reliable daily operation.

Q: What is the advantage of individual temperature controls for each mantle?

A: Individual energy regulators allow precise temperature adjustment for each sample, ensuring consistent and reproducible results across different tests on the same batch.
