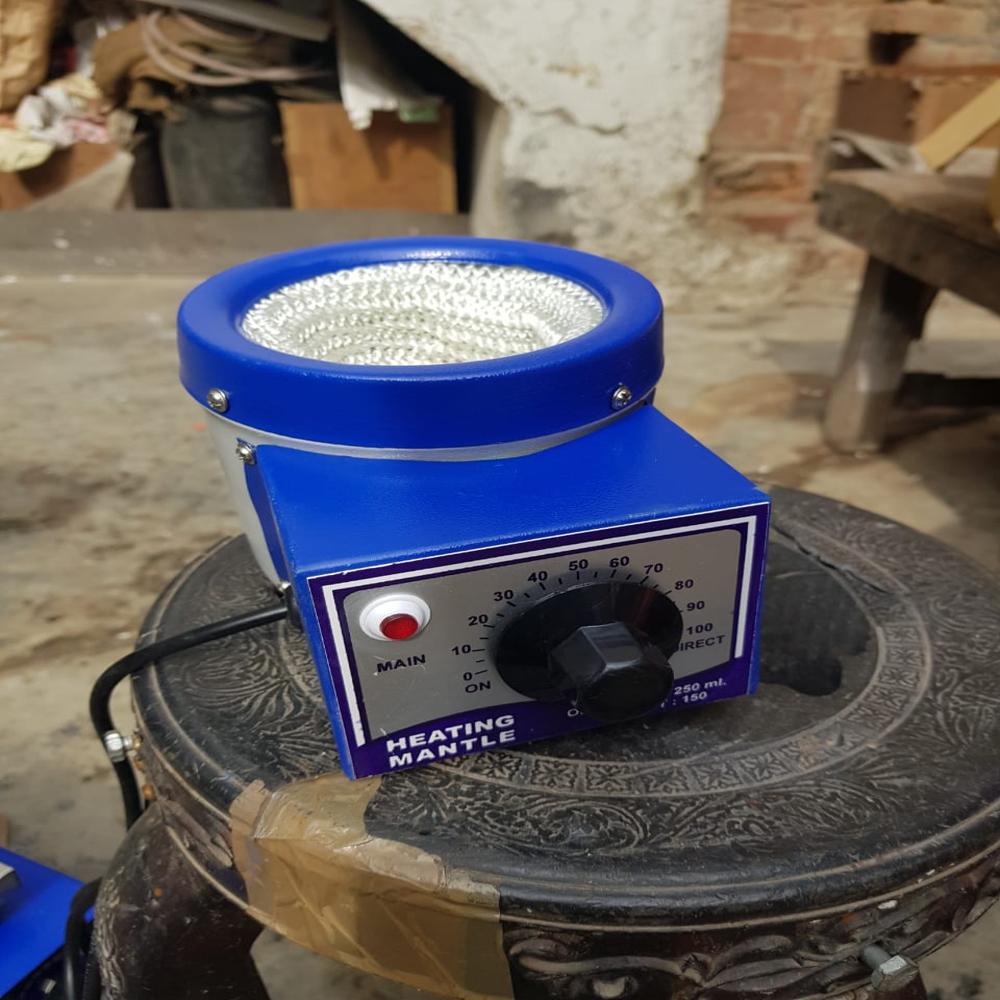

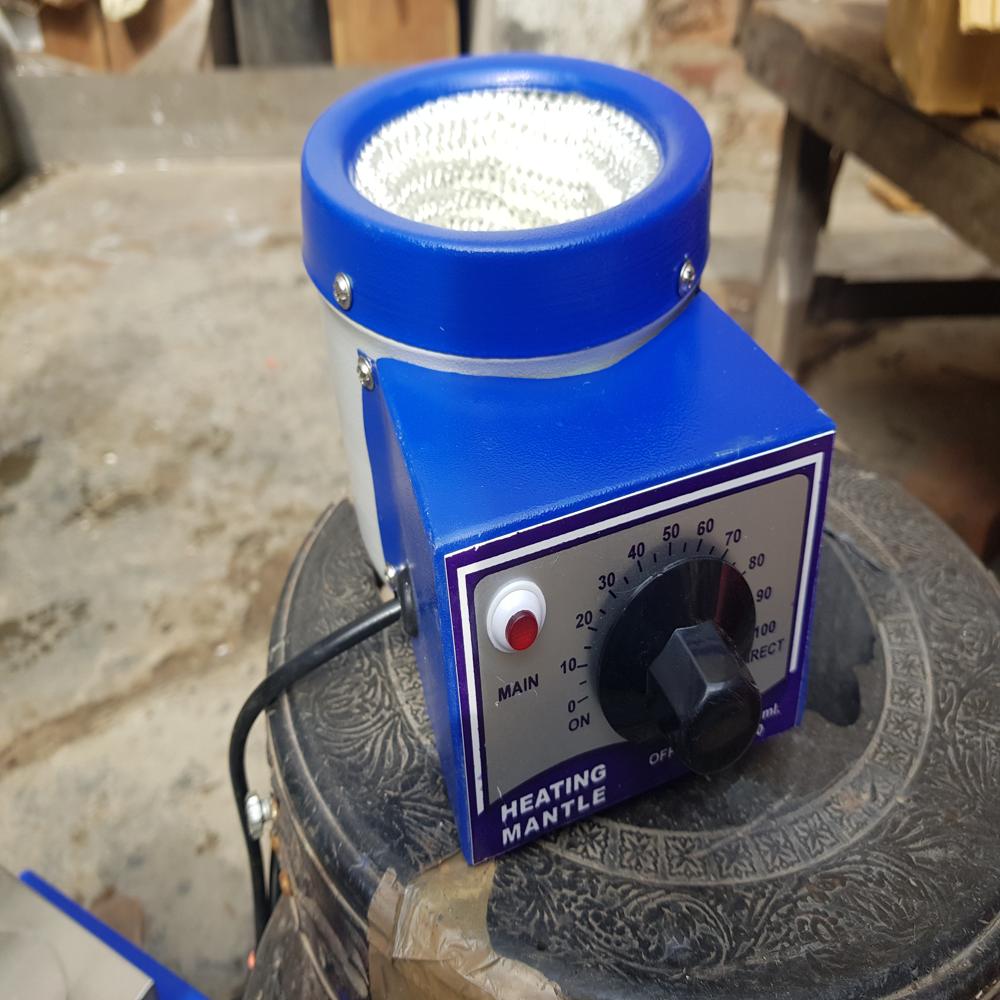

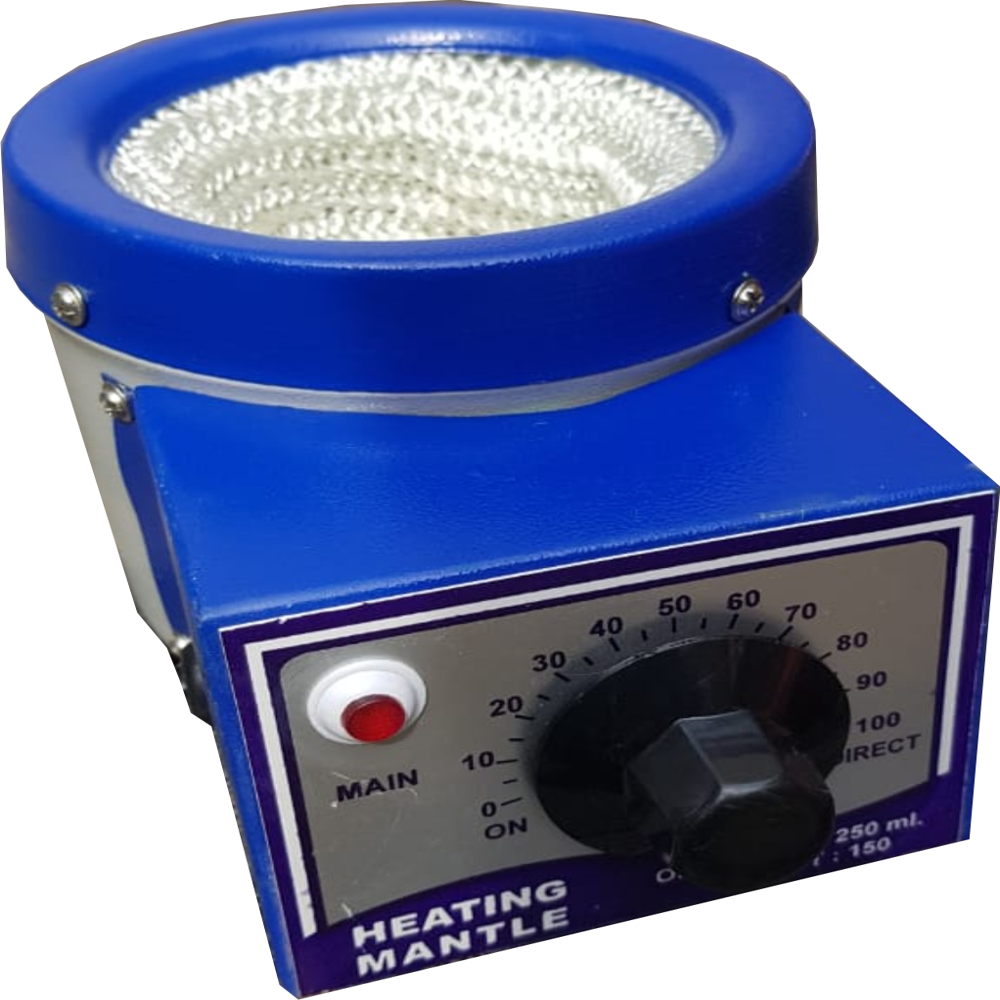

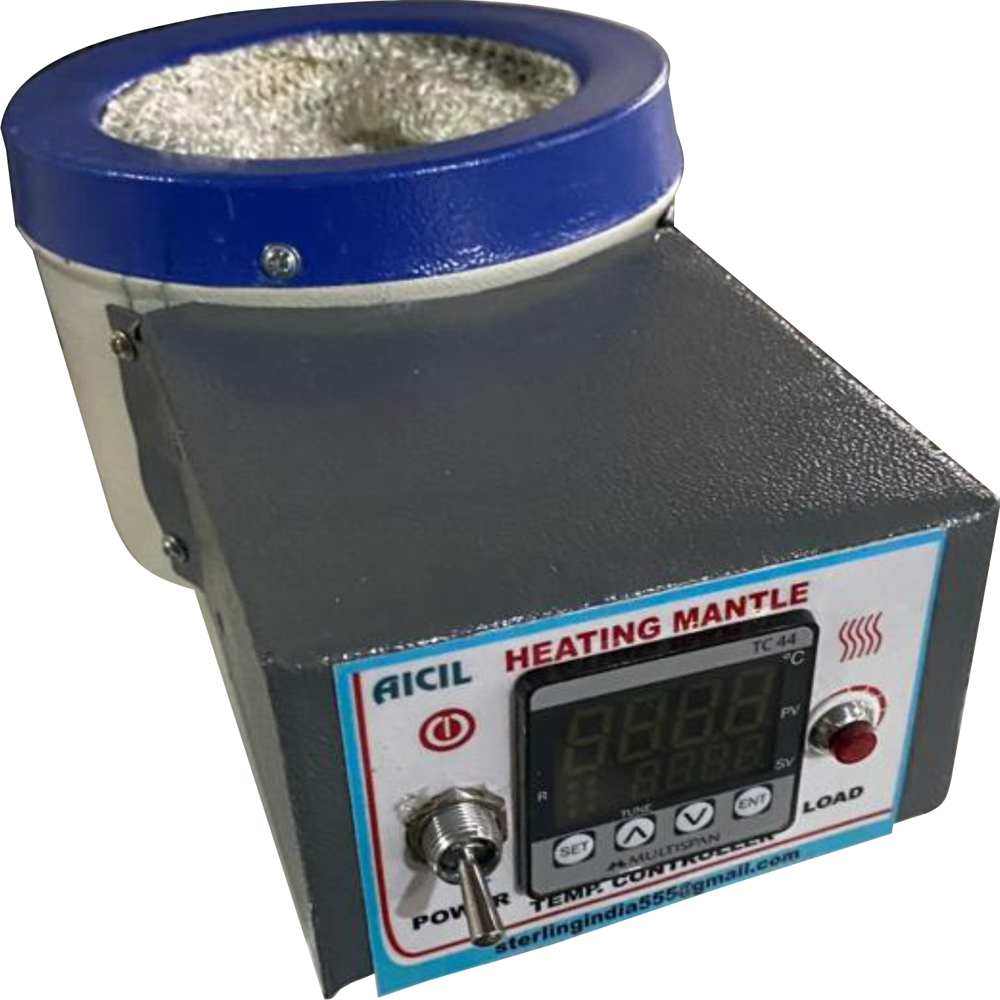

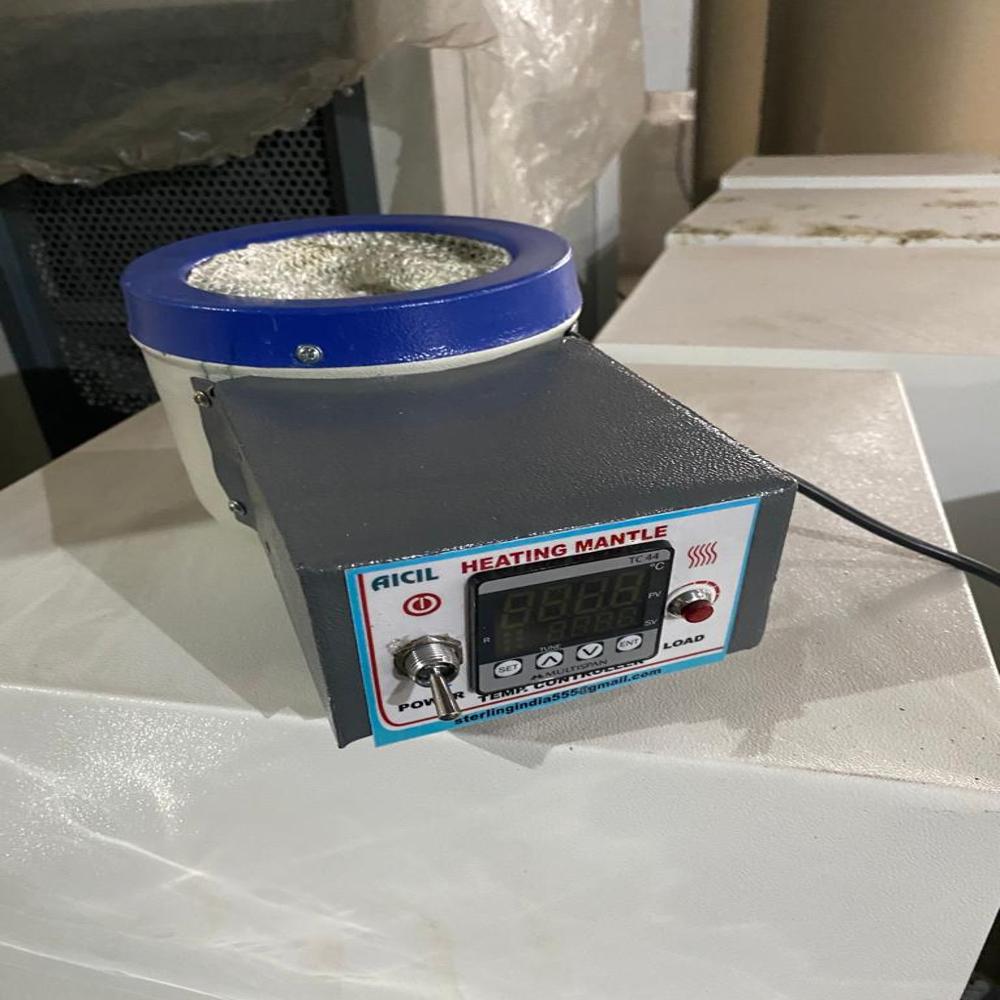

Aicil Heating Mantle 50ml

Name: Aicil Heating Mantle 50ml
Brand: Sterling India
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Heating Mantle 50ml Specification

Power Supply
AC mains power

Accuracy
5C (temperature control efficiency)

Control Type
Analog rotary dial

Heating Capacity
50 ml

Shape
Round mantle, square housing

Features
Thermostatic temperature control, non-flammable insulation, shock-proof body, indicator lamp

Display Type
No digital display; analog dial

Glass Type
Suitable for round bottom flasks (50ml)

Temperature Resistance
Up to 400C

Type
Laboratory Heating Mantle

Dimension (L*W*H)
Approx. 150 x 150 x 150 mm

Equipment Type
Electric Heating Apparatus

Equipment Materials
Outer body made from powder-coated mild steel, heating element of nichrome wire

Power
60-100 Watt

Voltage
220-240V AC, 50/60 Hz

Material
Body: Metal; Heating Element: Glass Fiber insulated

Application
Uniform heating of flasks in laboratories

Capacity (Ltr)
0.05 (50 ml)

Phase
Single phase

Insulation Type
Glass fiber wool insulation

Mounting
Bench-top use

Portability
Lightweight and compact design

Indicator
Red illuminated power indicator

Plug Type
Standard Indian/International plug option

Color
Blue with metallic control panel

Usage
Heating, boiling, distillation, and evaporation in lab applications

About Aicil Heating Mantle 50ml

With stands high temperature upto 350C. The body of Mantle is spun one piece from non-rusting Aluminum (upto 5.0 ltrs capacity) duly stoving painted. All heating mantles made from glass yarn are laggd with special grade mineral wool. to work on 220-230 volts AC supply

Uniform and Controlled Laboratory Heating

Designed for research and educational laboratories, the Aicil Heating Mantle 50ml offers reliable and even thermal distribution up to 400C. Its shock-proof, powder-coated mild steel body ensures longevity and operational safety, while glass fiber wool insulation maintains efficient heat retention to protect flask integrity during repeated laboratory use.

User-Friendly Analog Controls

The mantle is equipped with an easy-to-use analog rotary dial, enabling precise temperature adjustments with 5C accuracy. A red illuminated indicator lamp clearly signifies operation status, ensuring you always know when the device is active. The absence of digital components makes it robust and minimizes maintenance.

Versatility and Ease of Use

Suitable for a range of laboratory applications such as heating, boiling, evaporation, and distillation, this mantle's lightweight construction and bench-top mounting simplify setup and transport. With plug standards for both Indian and international sockets, it supports diverse laboratory environments worldwide.

FAQ's of Aicil Heating Mantle 50ml:

Q: How does the Aicil Heating Mantle 50ml achieve uniform heating in laboratory applications?

A: The Aicil Heating Mantle features a nichrome wire heating element insulated with glass fiber wool, ensuring even heat distribution around round bottom flasks up to 50ml. This setup prevents localized overheating and allows for consistent heating during boiling, distillation, and evaporation processes.

Q: What are the main benefits of using glass fiber wool insulation in this heating mantle?

A: Glass fiber wool insulation provides superior heat retention and uniform heat distribution while remaining non-flammable. This enhances energy efficiency, maintains stable internal temperatures up to 400C, and protects surrounding equipment and lab personnel from excess heat.

Q: When is it appropriate to use this heating mantle instead of other lab heating devices?

A: This mantle is ideal for laboratory tasks that require gentle, uniform heating of round bottom flasks, particularly at controlled temperatures up to 400C. It's preferred over hot plates or Bunsen burners for heating delicate chemical contents or when minimal risk of open flame is desired.

Q: Where should I position the Aicil Heating Mantle for optimal safety and operation?

A: Place the mantle on a stable, non-flammable laboratory bench in a well-ventilated area. Keep the device away from wet surfaces and flammable materials. Its compact, bench-top design and shock-proof housing make it well-suited for multiple laboratory settings.

Q: What is the process for adjusting the temperature on this heating mantle?

A: Temperature adjustment is managed through an analog rotary dial on the metallic control panel. Rotate the dial to increase or decrease the heating intensity. The built-in thermostatic mechanism provides precise control with 5C accuracy, while the red light indicates when the unit is powered.

Q: Is the Aicil Heating Mantle compatible with international electrical standards?

A: Yes, this heating mantle operates on a single-phase 220-240V AC, 50/60 Hz power supply, and provides options for standard Indian or international plug types, ensuring compatibility with most laboratory electrical outlets.

Q: What flask types are suitable for use with this mantle, and what is the maximum capacity?

A: The mantle is designed specifically for round bottom flasks up to 50ml capacity. Using the recommended flask shape and size ensures effective contact with the heating element and optimal uniform heating.
