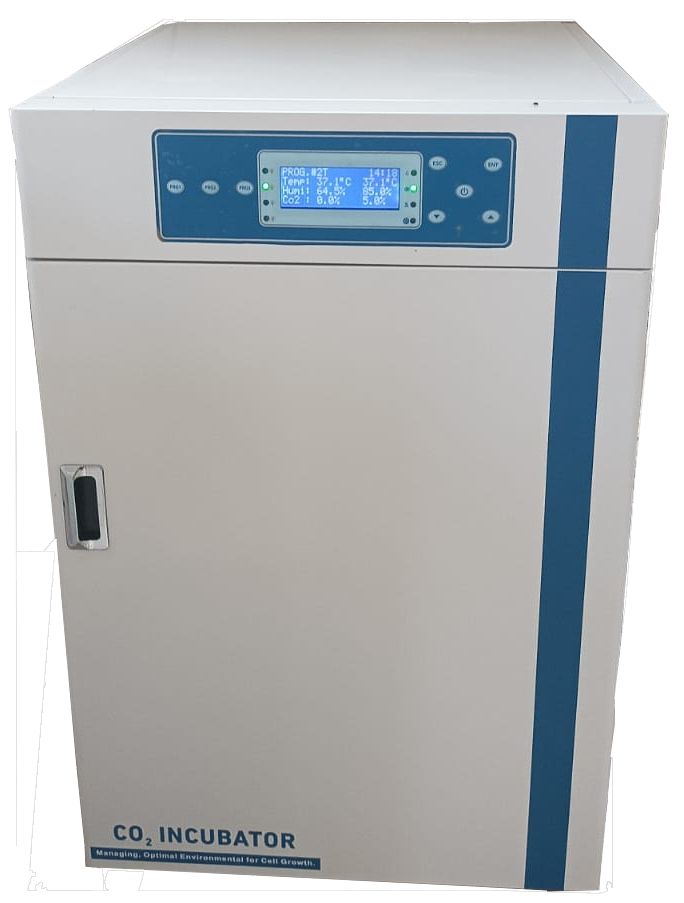

Aicil CO2 Incubator 170LTR

Name: Aicil CO2 Incubator 170LTR
Brand: Sterling India
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Aicil CO2 Incubator 170LTR Specification

Glass Type
Observation Glass Window (if provided)

Shape
Rectangular

Display Type
Digital LED/LCD Display

Heating Capacity
Ambient + 5C to 60C

Features
Automatic CO2 Control, Audible Alarm, Uniform Temperature Distribution, Easy-to-Clean Chamber

Accuracy
0.1C (Temperature), 0.1% (CO2)

Power Supply
Single Phase, 230V 50Hz

Control Type
Microprocessor Digital Control

Temperature Resistance
Up to 60C

Type
CO2 Incubator

Equipment Type
Incubator

Equipment Materials
Powder Coated Mild Steel (Outer), Stainless Steel Chamber (Inner)

Voltage
230V AC, 50Hz

Material
Stainless Steel (Inner), Mild Steel (Outer)

Application
Cell Culture, Tissue Engineering, Microbiological Research, Incubation of Mammalian Cells

Capacity (Ltr)
170 Liters

Chamber Lighting
Optional Internal Lighting

Door Type
Tight Seal with Optional Observation Window

Data Logging
Optional USB/RS232

Alarm System
Over-temperature and CO2 concentration deviation

Sterilization
High-Temperature/UV Sterilization Function (Optional)

Air Circulation
Internal Fan-forced Circulation for Uniformity

Sensor Type
Infrared (IR) or Thermal Conductivity (TC) CO2 Sensor

Inner Chamber Volume
170 Ltr

Usage Environment
Laboratory, Hospital, Research Institute

Humidity Range
90-95% RH (with water tray)

CO2 Range
0% to 20%

Shelves
Removable Stainless Steel Shelves

About Aicil CO2 Incubator 170LTR

Carbon dioxide (Co2) incubators provide optimal growing conditions and contamination preventation for valuable cell cultures. Aicil provides a wide range of Co2 incubators,ranging from a small capacity and volume to a large scale capacity cabinet. All the Co2incubators are build with the patented Water Jacket and Air Jacket systems, whichminimizes the risk of condensation at the present and in the future. Powe Supply 220V

Advanced Control and Precision

Aicil's CO2 Incubator provides microprocessor-based digital controls, ensuring accurate regulation of temperature (up to 60C with 0.1C accuracy) and CO2 concentration (up to 20% with 0.1% accuracy). Internal fan-forced air circulation guarantees even temperature and CO2 distribution throughout the 170-liter stainless steel chamber, making it suitable for sensitive laboratory and research applications.

Flexible Design for User Convenience

Equipped with removable stainless steel shelves, a tight-sealing door, and an optional observation window, this incubator supports easy access and effective visual monitoring of specimens. Optional features like internal lighting, USB/RS232 data logging, and UV/high-temperature sterilization enhance usability while maintaining high safety and hygiene standards.

Reliable Safety and Sterilization Features

Critical alarms for over-temperature and CO2 deviation protect valuable cultures by immediately notifying users of any irregularities. For enhanced sterilization, optional high-temperature and UV functions can be enabled, ensuring a contaminant-free chamber, crucial for clinical, research, and industrial lab settings.

FAQ's of Aicil CO2 Incubator 170LTR:

Q: How does the Aicil CO2 Incubator maintain a uniform environment for cell cultures?

A: The incubator utilizes an internal fan-forced air circulation system, which ensures even distribution of temperature and CO2 concentration throughout the chamber, providing a stable environment ideal for sensitive cell culture and tissue engineering processes.

Q: What types of applications are supported by this 170-liter CO2 incubator?

A: This CO2 incubator is designed for a range of applications including cell culture, tissue engineering, microbiological research, and incubation of mammalian cells. Its precise environmental controls make it suitable for laboratories, hospitals, and research institutes.

Q: When should the sterilization function be used, and what options are available?

A: Sterilization should be performed periodically or after contamination to maintain a clean environment. The Aicil incubator offers optional high-temperature and UV sterilization functions, allowing users to select the most suitable method for their lab's workflow and biosafety requirements.

Q: Where can users monitor and control the incubator's settings?

A: Settings and real-time parameters can be monitored and adjusted via the digital LED/LCD microprocessor control panel on the front of the unit. Parameters include temperature, CO2 levels, and alarms, with optional data logging available via USB or RS232 interfaces.

Q: What safety alarms are integrated in the incubator's control system?

A: The incubator is equipped with audible alarms for over-temperature and CO2 concentration deviation. These systems alert users immediately if environmental conditions move outside set parameters, protecting both experiments and sensitive biological samples.

Q: How easy is it to clean and maintain the inner chamber?

A: The chamber is constructed from stainless steel, which is both resistant to corrosion and easy to clean. Removable shelves further simplify the cleaning process, supporting laboratory hygiene and routine maintenance.
