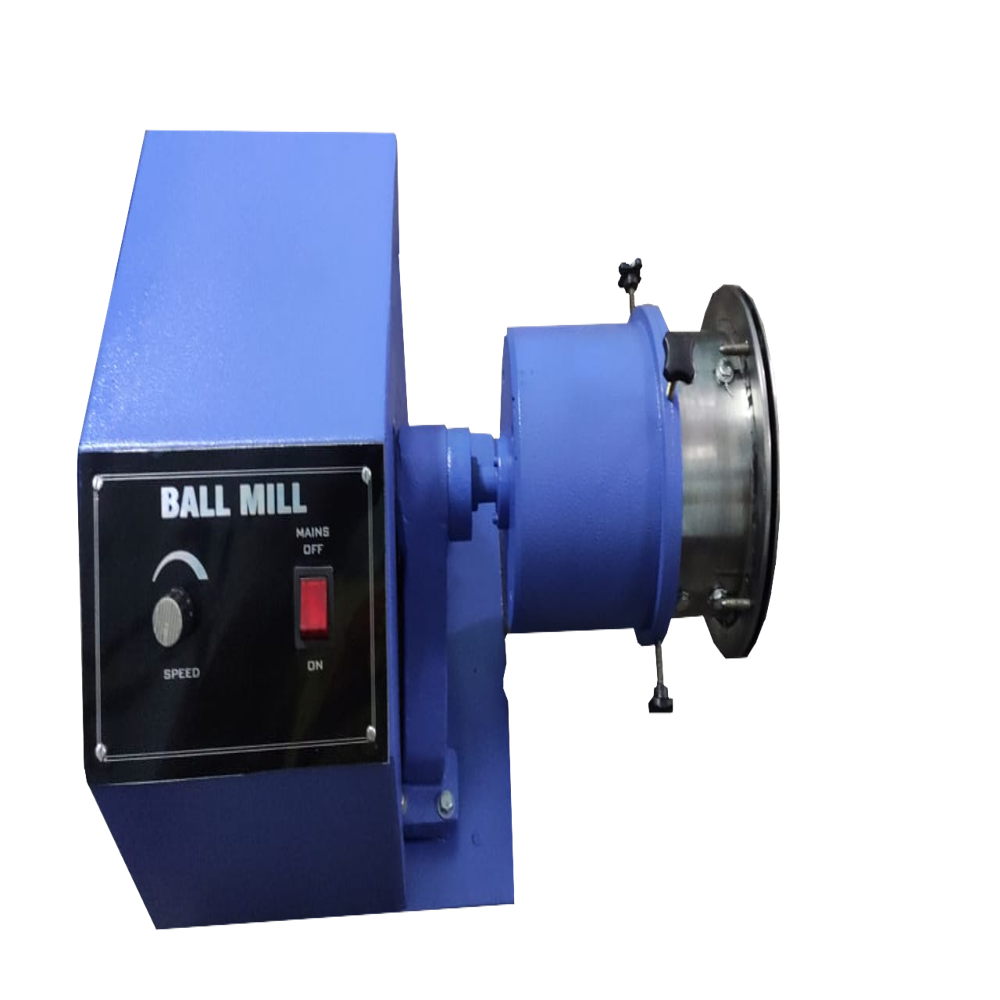

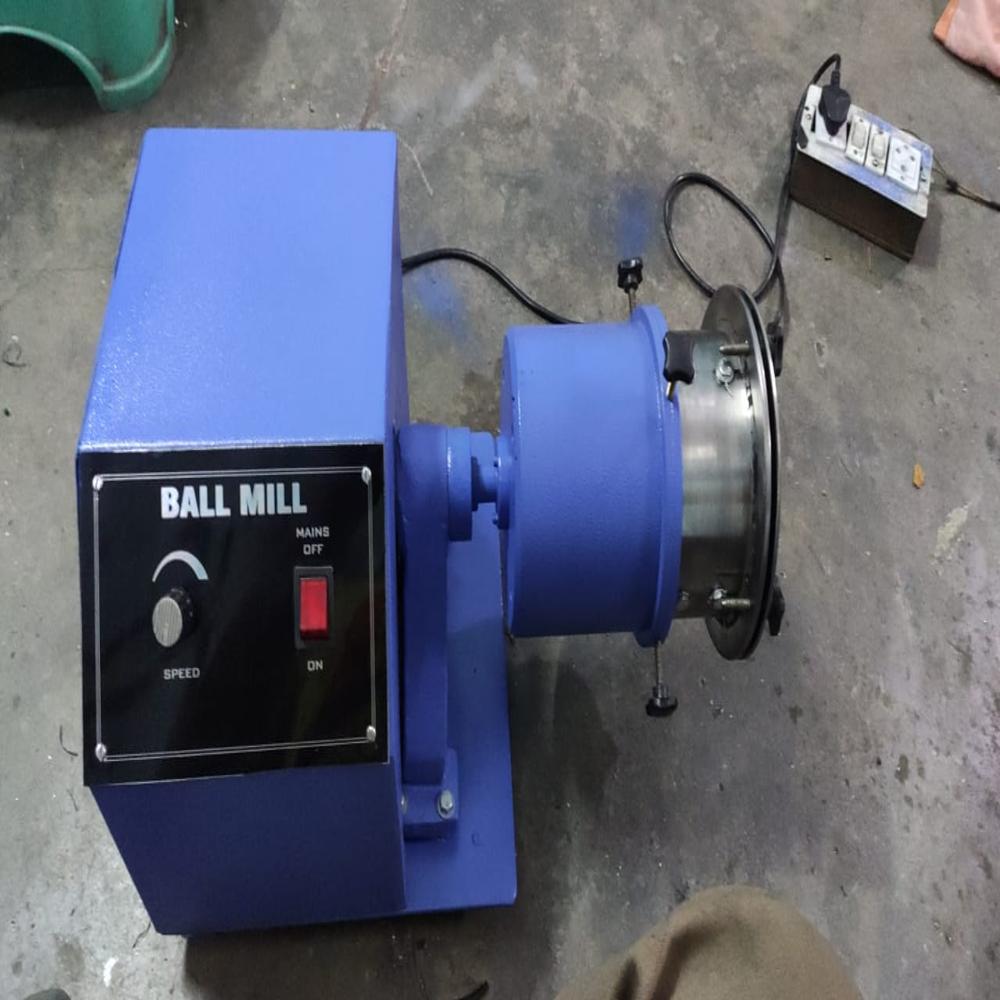

Aicil Ball Mill 1.0 kg

Name: Aicil Ball Mill 1.0 kg
Brand: Sterling India
Price: 21000.0 INR
Availability: InStock

Price 21000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aicil Ball Mill 1.0 kg Specification

Display Type
Analog Dial

Features
Robust design, easy operation, removable drum, powder coated body, smooth and quiet performance.

Temperature Resistance
Standard (Not for high-temperature applications)

Control Type
Manual Speed Regulator

Accuracy
Standard Laboratory Accuracy

Shape
Rectangular Base with Cylindrical Drum

Power Supply
Single Phase, 220V AC

Speed Range
0 - 80 RPM (adjustable)

Type
Ball Mill

Dimension (L*W*H)
Approx. 380 x 215 x 270 mm

Equipment Type
Laboratory Ball Mill

Equipment Materials
Mild Steel Body with Powder Coating

Power
220V, 50 Hz AC

Voltage
220V

Material
Stainless Steel (Drum)

Application
Grinding and mixing of chemicals, ores, pigments and other materials for laboratory use.

Capacity (Ltr)
1.0 kg batch capacity

Weight
Approx. 11 kg (net)

Noise Level
Low operating noise

Suitable Media
Steel or Ceramic Balls (not included)

Mounting Type
Tabletop

Drum Length
140 mm

Safety Features
Overload Protection, Safety Lid Lock

Drum Diameter
120 mm

Finish
Powder Coated Blue

Maintenance
Low maintenance

Rotational Mechanism
Fixed, with drive shaft and gearbox

About Aicil Ball Mill 1.0 kg

The grinding bowls with material and balls rotate around their own axis on a counterrotating supporting disc. The centrifugal forces caused by the rotation of the grinding bowls and supporting discs work on the contents of the grinding bowls. The force resulting from rotation of the grinding bowl when the mill is started causes the rotating balls to rub against the inside wall of the bowl thus crushing the material. At a certain point in time the stronger centrifugal force of the supporting disc causes the grinding material and balls to separate from the inner wall of the grinding bowl. The grinding balls cross the bowl at high speeds impacting with the grinding material on the opposite wall - creating size reduction by impact.

Precision Laboratory Grinding and Mixing

The Aicil Ball Mill stands out for its precise control, accommodating a wide range of laboratory preparation needs-from chemicals to ores and pigments. Its adjustable settings and reliable speed regulation ensure uniform processing for consistent results every time.

Robust Construction with User Safety in Mind

Engineered with a mild steel body and stainless steel drum, the Ball Mill features a powder-coated exterior for increased durability. Overload protection, a secure lid lock, and stable tabletop mounting provide optimum safety during each operation.

Low-Noise and Low-Maintenance Performance

Experience efficient operation with minimal disruption. This Ball Mill is designed for smooth and quiet performance, generating low operating noise. Maintenance is straightforward, helping laboratories to maximize uptime and reduce operational hassles.

FAQ's of Aicil Ball Mill 1.0 kg:

Q: How is the Aicil Ball Mill 1.0 kg typically used in laboratory environments?

A: This lab ball mill is primarily used for grinding and mixing a variety of solid materials, such as chemicals, ores, and pigments. It ensures fine particle size distribution, making it ideal for sample preparation and analytical applications in laboratory settings.

Q: What are the key benefits of using this ball mill for laboratory applications?

A: The main benefits include precise material processing, low operating noise, easy-to-clean removable drum, robust powder-coated construction, and multiple safety features such as overload protection and a safety lid lock. Its adjustable speed control ensures consistent and accurate results.

Q: How do you operate and regulate the speed on the Aicil Ball Mill?

A: The mill features a manual speed regulator and an analog dial display, allowing operators to set speeds from 0 to 80 RPM. This makes it easy to match the required processing conditions for different sample types and desired fineness levels.

Q: What maintenance does this ball mill require and how often should it be performed?

A: Routine maintenance is minimal due to its robust and simple design. Regularly check for wear on the drum and drive components, ensure that the powder-coated body remains intact, and clean the drum after each use. Overload protection helps prevent excess strain, increasing the unit's lifespan.

Q: Which grinding media can be used with this equipment, and are they included?

A: The Aicil Ball Mill is compatible with both steel and ceramic balls; however, these are not included with the unit and must be sourced separately. Select the appropriate media based on your material compatibility and desired milling outcome.

Q: What safety features are integrated into the ball mill?

A: For user safety, the mill includes overload protection to prevent damage from excessive loads and a safety lid lock to ensure the drum remains securely closed during operation, thereby preventing accidental contact or spillage.

Q: Where is the ideal placement for operating the ball mill, and what are its installation requirements?

A: The unit is designed for tabletop mounting, making it suitable for laboratory benches or workstations. It requires a single-phase 220V AC power supply and should be placed on a stable, flat surface for safe operation.
