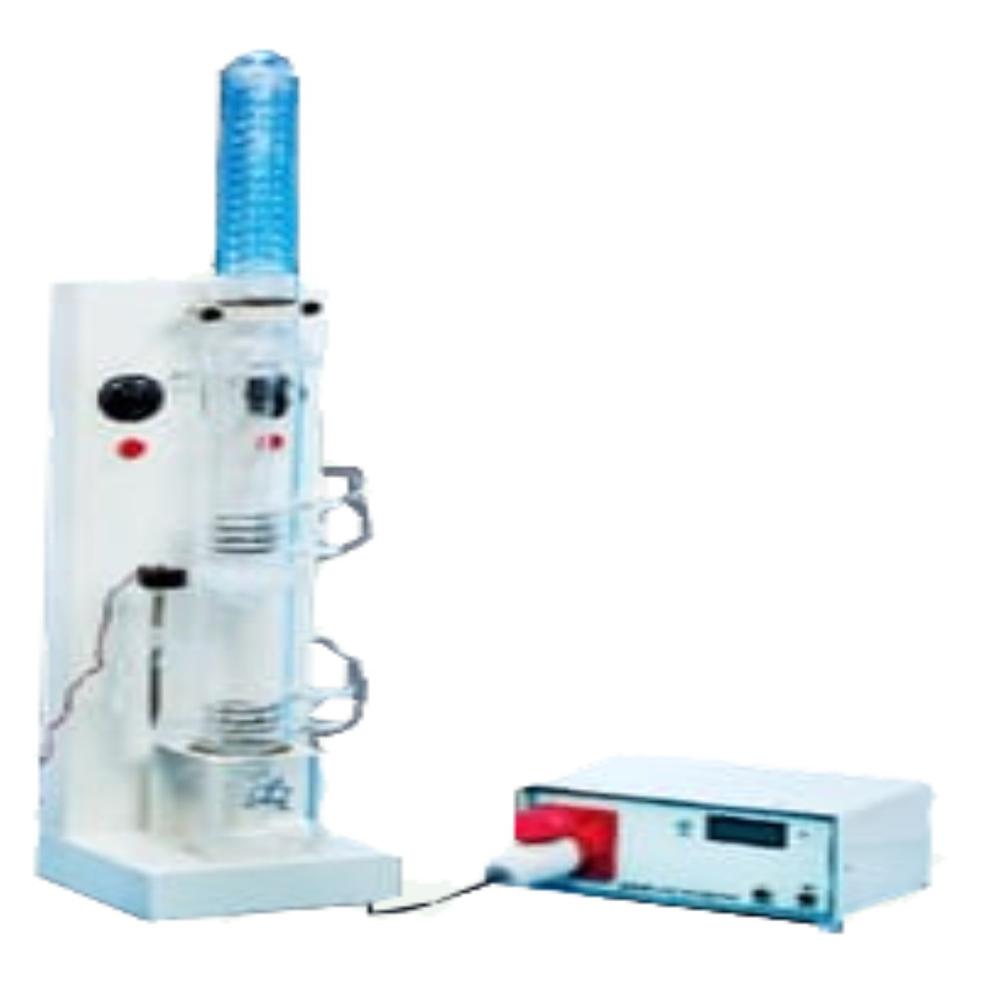

Aicil All Quartz Double Distillation 3.5ltr

About Aicil All Quartz Double Distillation 3.5ltr

it has been designed keeping in view customer requirement and easy service bility of the equipment. All quartz double distillation consists of demountable upper lower boiler. The lower boiler has a built in quartz boiler with a cup on top. Mounted on the boiler with the help o ball and socket joint. Double walled condenser ensures separate condensing of vapors coming from the two boiler using a single cooling circuit. The unit in mounted on a specially designed power coated stand and is also provided with safety control unit. This new dual- safety cut off has been designed for better and accurate control of the distillation unit. it has been incorporated with advanced microprocessor based electronic circuitry. This has the latest latest electronic technology that has been introduced by our company which gives an easy user machine interaction. The alpha numeric LCD which has been used shows all message that correspond to the running of the machine. Also there is alarm system which beeps as and when user attention is required. Special advantage of demountable model ? ? Easy cleaning of the first boiler since it can be dismantled from the assembly. ? Ease of interchange bility as it is provided with ball & socket joint. Boiler & condenser have large boiling space resulting in balanced boiling & improved quality of distillate. ?Compact and easy to install.

Superior Water Purity for Laboratory Applications

Engineered with high-grade transparent quartz glass, the Aicil All Quartz Double Distillation unit delivers exceptionally pure water, ideal for analytical and research laboratories. It ensures the removal of pyrogens and organic contaminants, providing distilled water with an output conductivity of 1.0-1.5 S/cm and a pH range of 5.5-7.0. The double distillation process guarantees consistent ultrapure water for sensitive experiments and preparations.


Innovative Design and Ease of Maintenance

This unit features a robust vertical shape and removable quartz immersion heaters, facilitating straightforward cleaning and maintenance. The integrated drain valve allows for hassle-free maintenance, while the benchtop design ensures convenient placement in laboratory settings. Both digital and manual controls offer flexibility, and automatic safety features such as low water cut-off and heater protection safeguard the apparatus for reliable long-term use.


Efficient Performance and Resource-Friendly Operation

With a distillation capacity of 3.5 liters per hour, the apparatus is optimized for low water consumption-requiring approximately 60 liters/hour of cooling water at 15C-20C. The automatic system is designed for minimal contamination risk and superior corrosion resistance, resulting in consistent distilled water output with reduced operational burdens. Perfect for laboratories prioritizing efficiency and reliability.
